PLAN 417-695

Photographs may show modified designs.

Home  /  Style  /  European

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Select Plan Set Options

What's included?

Additional options

Dropdown arrow

NOW $1530.00
You save $270.00 (15% savings)
Sale ends soon!
Best Price Guaranteed*
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-695

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A gentle blend of European flavors lends multi-cultural styles and breathtaking elegance to this timeless design. Sweeping verandas, a grand two-story entry and intricate balustrades borrow freely from the alluring French countryside, with a dash of Mediterranean spice. Outstanding architectural details are enhanced by the use of cast stone, balustrades, ornamental iron and stone. This mesmerizing facade and other splendid features are reminiscent of days gone by. The entry is rich with architectural details: a twenty-foot ceiling and three 'Juliet' balconies. Walls of glass and soaring ceilings create a spacious atmosphere. A quiet den can double as a home office for the entrepreneur. The living room hosts an enchanting curved stairway and opens to the patio and pool area. The master suite offers serene views in the sitting area, which acts as a sumptuous reading retreat. Two walk-in closets are offered, as well as a luxuriously styled master bath with a central whirlpool tub and a bumped-out window view. The master suite also accesses the patio, which lays claim to a lagoon-style pool with a sandbar, spa, waterfall and fountain. Garden courtyards off the study and dining room gracefully complete the main level. Upstairs, two family bedrooms share a bath.

Full Specs & Features


Depth : 107'

Height : 35'

Width : 95' 8"


First Floor: 3517 sq/ft

Second Floor: 1254 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Block

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room


Main Floor Laundry

Master Sitting Area

Garage Features

Side Entry Garage

Outdoor Spaces



Outdoor Fireplace

Outdoor Kitchen Grill


3rd BR Closet:

16 sq/ft width 2' x depth 8' 4"

Bathroom 3:

43 sq/ft width 5' 2" x depth 8' 4"

Bathroom 4:

77 sq/ft width 14' 6" x depth 5' 4"

Bathroom 5:

65 sq/ft width 7' 10" x depth 8' 4"

Bedroom 2:

150 sq/ft width 12' 4" x depth 12' 2"

Bedroom 2 Closet:

14 sq/ft width 2' x depth 7' 4"

Bedroom 3:

146 sq/ft width 12' x depth 12' 2"

Bedroom 3 Closet:

14 sq/ft width 2' x depth 7' 4"

Bedroom 4:

171 sq/ft width 12' x depth 14' 4"

Bedroom 4 Closet:

17 sq/ft width 2' x depth 8' 10"

Bedroom 5:

207 sq/ft width 12' x depth 17' 4"

Bedroom 5 Closet:

17 sq/ft width 2' x depth 8' 10"

Breakfast Room:

159 sq/ft width 13' 8" x depth 11' 8"

Den/Office or Bedroom 1:

224 sq/ft width 14' 8" x depth 15' 4"

Dining Room:

207 sq/ft width 14' 8" x depth 14' 2"

Exercise Room:

284 sq/ft width 13' 9" x depth 20' 8"

Family Room:

191 sq/ft width 14' 4" x depth 13' 4"


125 sq/ft width 13' 6" x depth 9' 4"


513 sq/ft width 22' 8" x depth 22' 8"

Garage Two:

258 sq/ft width 20' 5" x depth 12' 8"


170 sq/ft width 12' 6" x depth 13' 8"

Laundry Room:

68 sq/ft width 8' x depth 8' 6"

Living Room:

258 sq/ft width 16' x depth 16' 2"


96 sq/ft width 9' 10" x depth 9' 10"

Master Bathroom:

221 sq/ft width 19' x depth 11' 8"

Master Bedroom:

355 sq/ft width 17' 4" x depth 20' 6"

Master Closet:

39 sq/ft width 7' 1" x depth 5' 7"

Master Closet Two:

99 sq/ft width 11' 4" x depth 8' 9"

Master Sitting Room:

112 sq/ft width 10' 8" x depth 10' 6"


328 sq/ft width 13' 4" x depth 24' 8"

Powder Room:

31 sq/ft width 5' 2" x depth 6'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

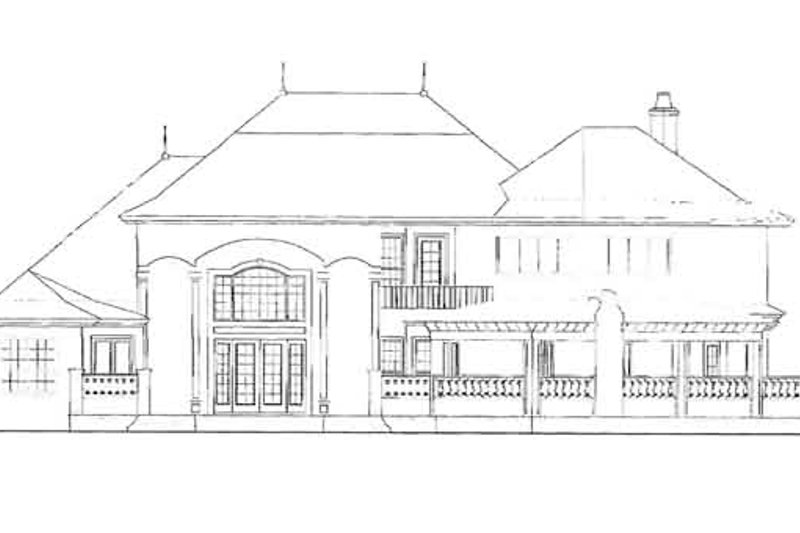

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

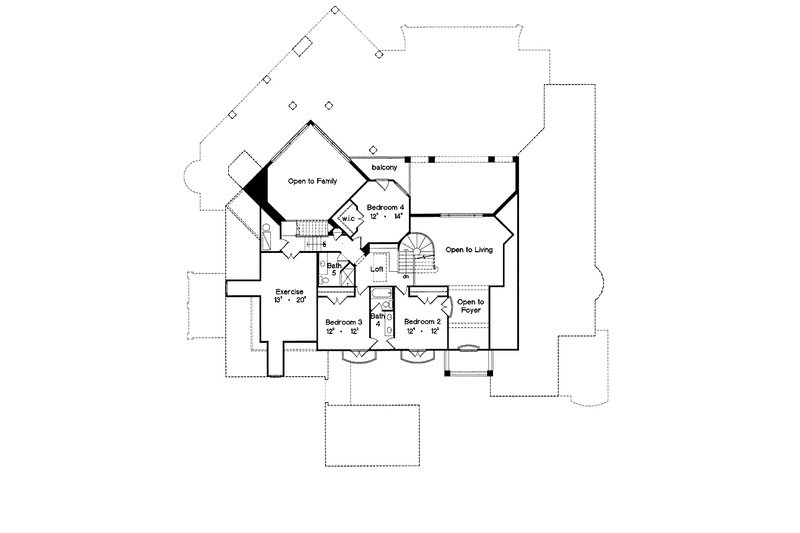

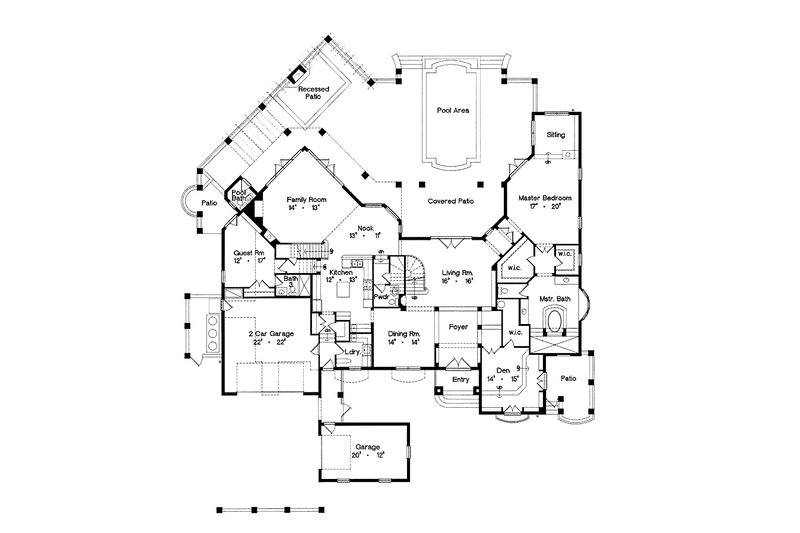

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
5 printed plan sets mailed to you.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
One electronic set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets:
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
