Full Specs & Features
Depth : 66'
Height : 37'
Width : 92'
Basement : 2263 sq/ft
Main Floor : 2444 sq/ft
Upper Floor : 2331 sq/ft
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 10:12
Roof Framing : 2x6
Exterior Wall Framing
Framing : 2"x4"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

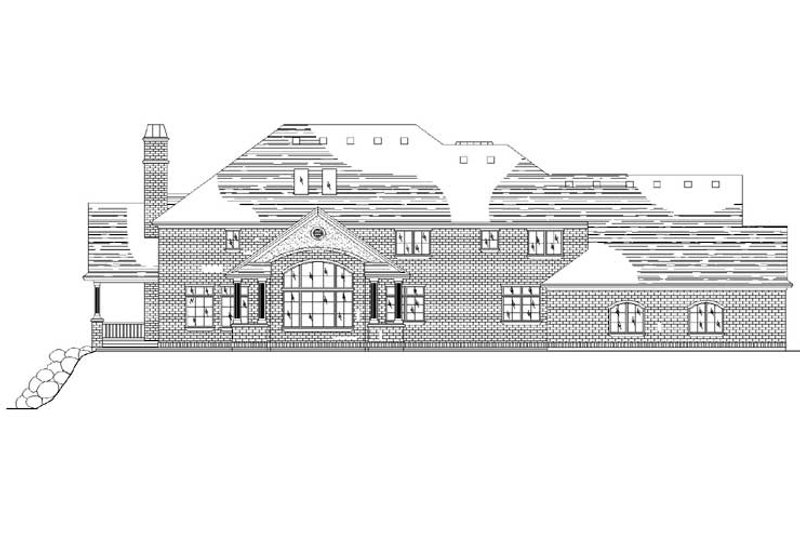

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

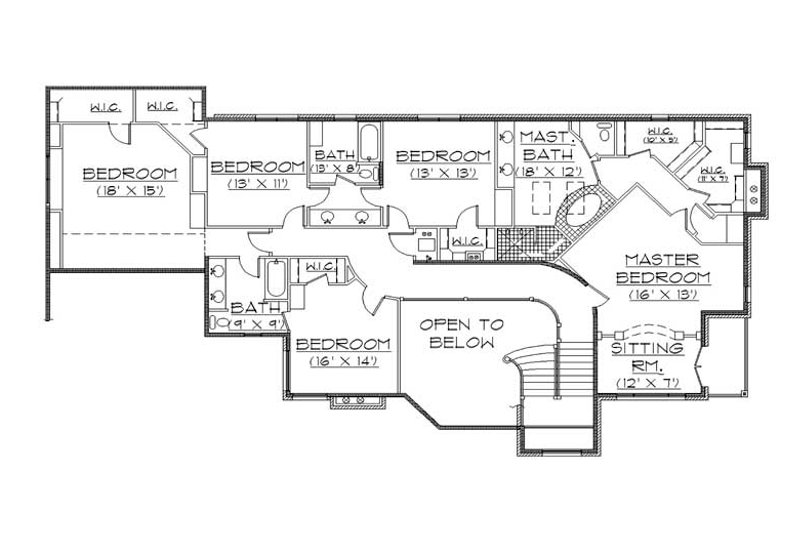

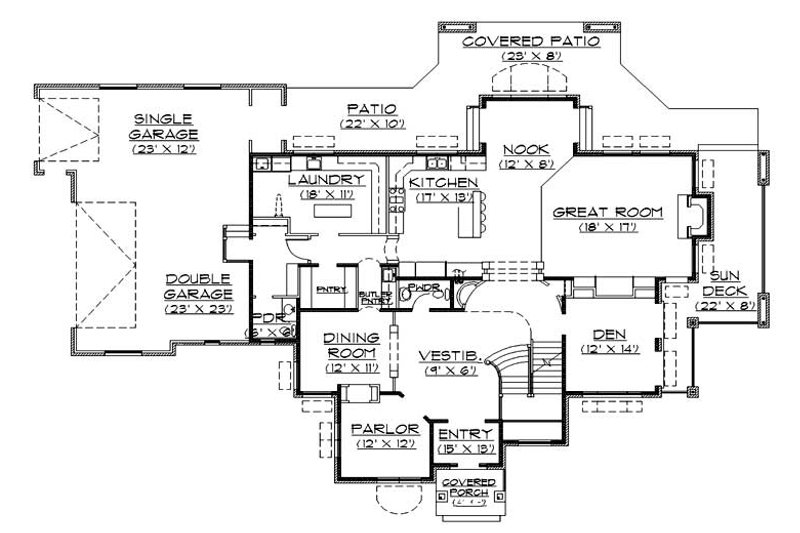

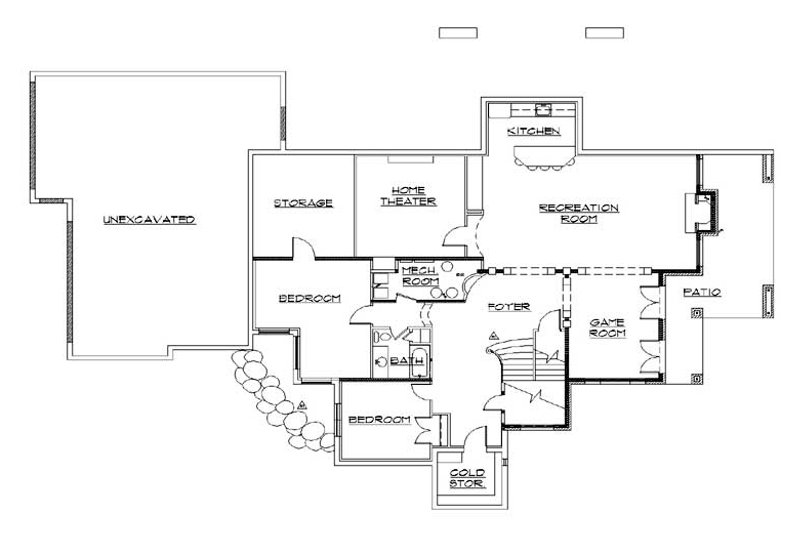

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
