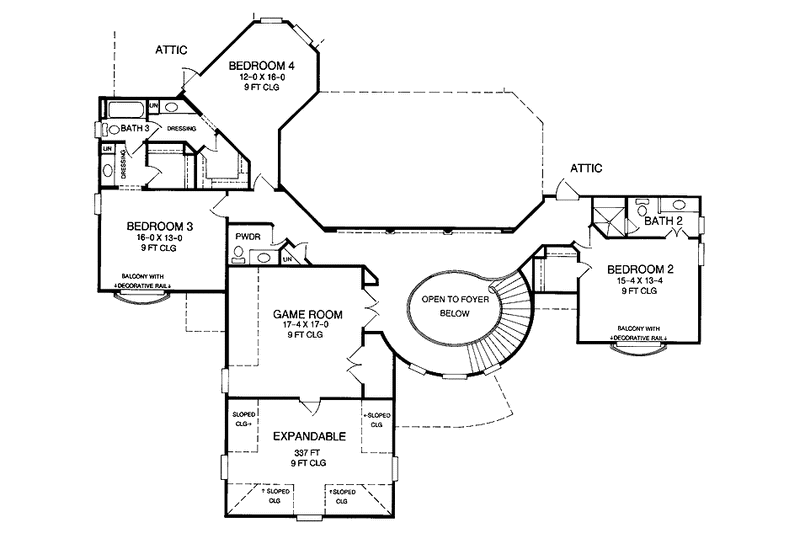

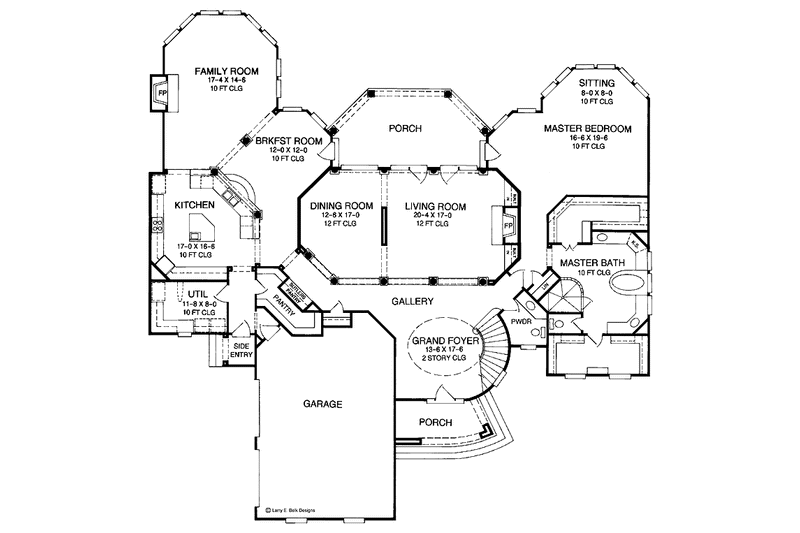

Designed for the family who loves individual style and luxurious living, this distinctive estate provides a comfortable home that will elicit "oohs" and "aahs" from everyone who sees it. Enter to a grand foyer within a two-story turret; a gallery hall expands to every room. Columns define the living room and dining area, elegantly arranged for ease of entertaining. The kitchen is a chef's dream come true, and opens to the bright breakfast room and bayed family room. Located in the right wing, the master suite exceeds expectations, with a bayed sitting area, vast bedroom, porch access, and a private bath that will soothe away all of your daily stresses. The upper level allows privacy for all three bedrooms and hosts a game room and expandable area.
204 sq/ft width 15' 4" x depth 13' 4"
208 sq/ft width 16' x depth 13'
192 sq/ft width 12' x depth 16'
144 sq/ft width 12' x depth 12'
215 sq/ft width 12' 8" x depth 17'
254 sq/ft width 17' 4" x depth 14' 8"
239 sq/ft width 13' 8" x depth 17' 6"
294 sq/ft width 17' 4" x depth 17'
283 sq/ft width 17' x depth 16' 8"
345 sq/ft width 20' 4" x depth 17'
325 sq/ft width 16' 8" x depth 19' 6"
Master Sitting Area:
64 sq/ft width 8' x depth 8'
93 sq/ft width 11' 8" x depth 8'
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
