PLAN 1054-73
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 69' 10"
Height : 41' 2"
Width : 99' 8"
Area
Bonus : 846 sq/ft
Garage : 833 sq/ft
Main Floor : 3536 sq/ft
Porch : 599 sq/ft
Upper Floor : 1373 sq/ft
Ceiling
Bonus Ceiling : 10' 1"
Garage Ceiling : 8' 7"
Main Ceiling : 10' 1"
Upper Ceiling Ft : 9' 1"
Roof
Primary Pitch : 12/12
Roof Framing : 2x8
Roof Type : conventional
Exterior Wall Framing
Exterior Wall Finish : Brick Veneer
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Play Flex Room
Upstairs Laundry
Wet Bar
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

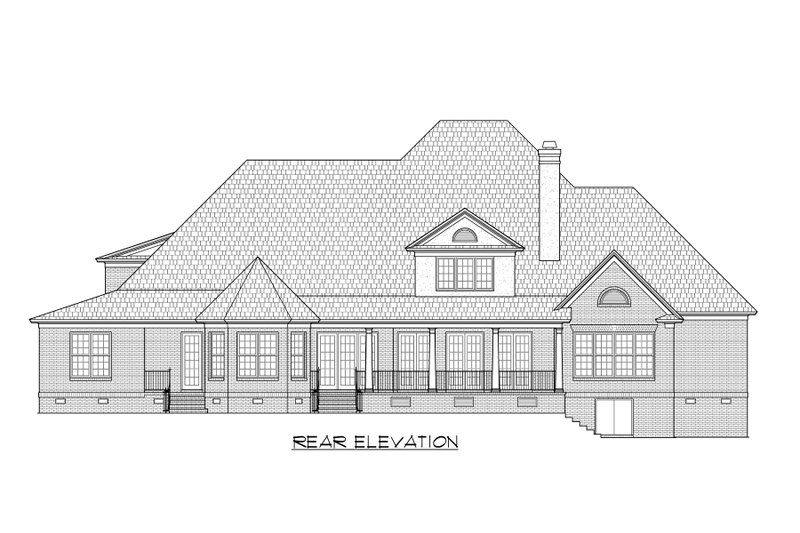

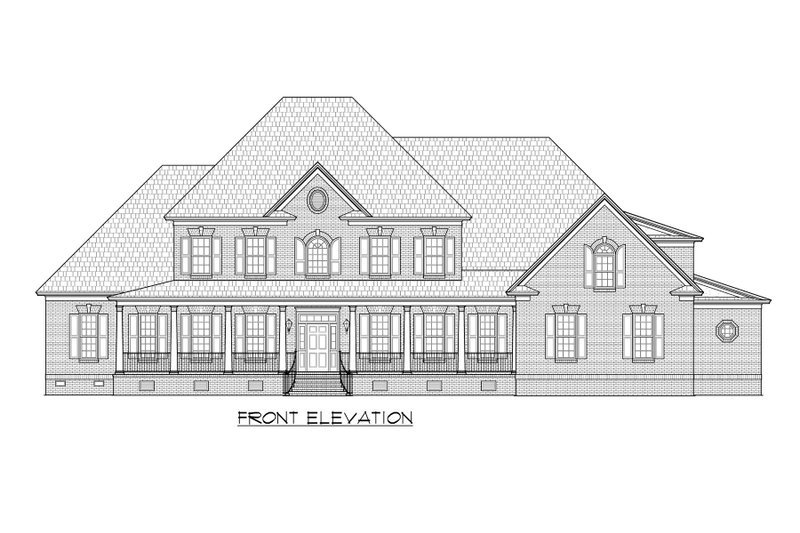

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

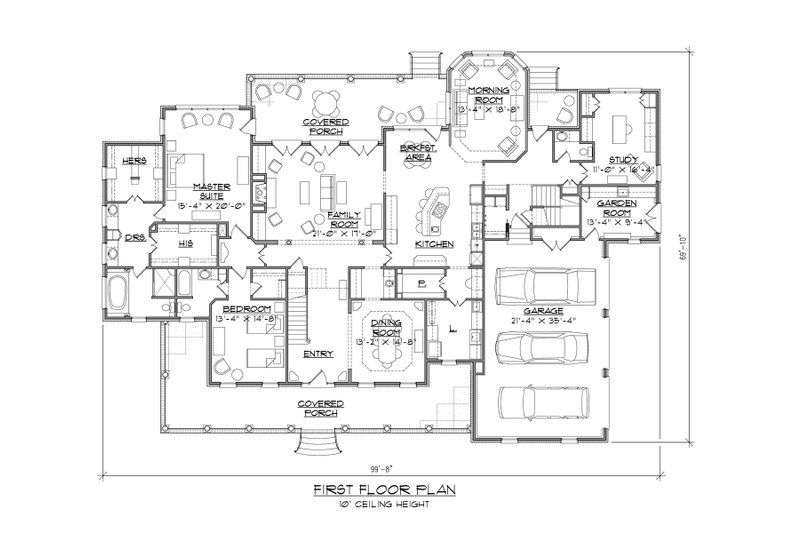

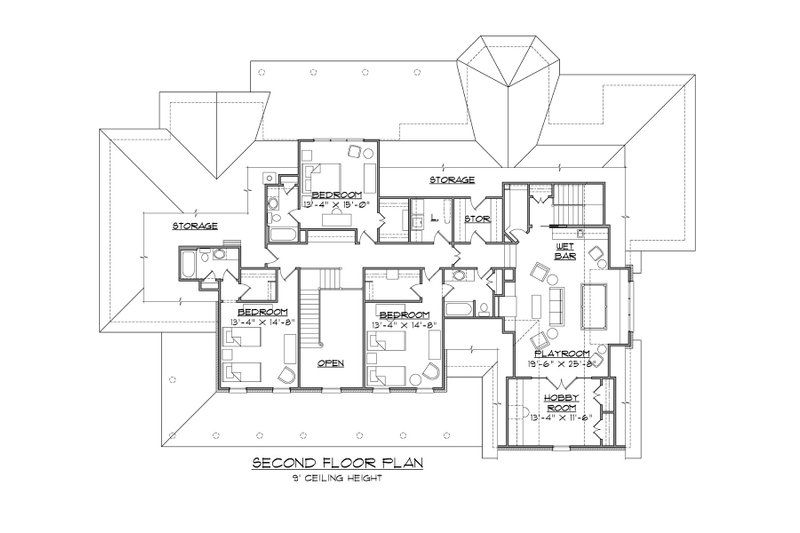

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1130.00
$1330.00
$1330.00
$2260.00
$1030.00
Foundation
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
