PLAN 1054-17

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 1054-17

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Floor Plans

Floor Plan - Main Floor Plan

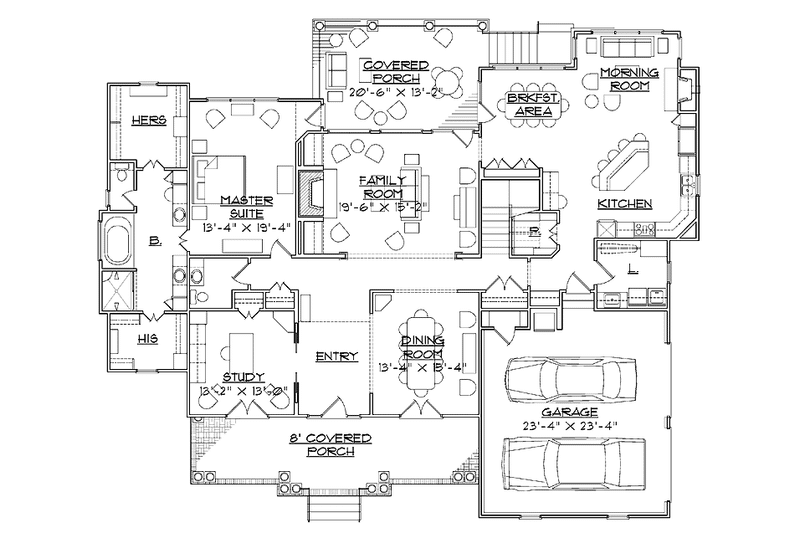

Country Floor Plan - Main Floor Plan Plan #1054-17
Floor Plan - Upper Floor Plan

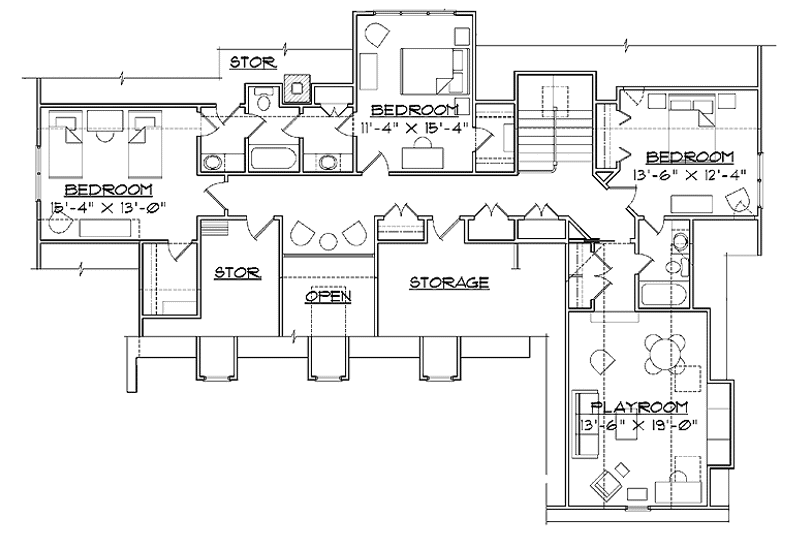

Country Floor Plan - Upper Floor Plan Plan #1054-17

Full Specs & Features

Depth : 62' 8"
Height : 29'
Width : 75' 4"
Bonus: 337 sq/ft
First Floor: 2636 sq/ft
Garage: 630 sq/ft
Porch: 282 sq/ft
Second Floor: 1123 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Storage Area
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Jack & Jill Bath

Bathroom 3:

43 sq/ft width 8' 8" x depth 5'

Bathroom 4:

87 sq/ft width 10' 3" x depth 8' 6"

Bedroom 2:

199 sq/ft width 15' 4" x depth 13'

Bedroom 2 Closet:

37 sq/ft width 5' 4" x depth 7'

Bedroom 3:

166 sq/ft width 12' 6" x depth 13' 4"

Bedroom 3 Closet:

12 sq/ft width 2' x depth 6' 4"

Bedroom 4:

173 sq/ft width 15' 4" x depth 11' 4"

Bedroom 4 Closet:

14 sq/ft width 3' 9" x depth 3' 10"

Bonus Room - Unfinished:

259 sq/ft width 13' 8" x depth 19'

Breakfast Room:

152 sq/ft width 12' 4" x depth 12' 4"

Dining Room:

204 sq/ft width 15' 4" x depth 13' 4"

Family Room:

294 sq/ft width 19' 4" x depth 15' 3"


177 sq/ft width 19' 9" x depth 9'


552 sq/ft width 23' 4" x depth 23' 8"


289 sq/ft width 19' 4" x depth 15'

Kitchen Island:

38 sq/ft width 6' 2" x depth 6' 2"

Laundry Room:

74 sq/ft width 8' 4" x depth 9'

Master Bathroom:

111 sq/ft width 6' 4" x depth 17' 8"

Master Bedroom:

257 sq/ft width 13' 4" x depth 19' 4"

Master Closet:

93 sq/ft width 9' 4" x depth 10'

Master Closet Two:

66 sq/ft width 9' 6" x depth 7'


32 sq/ft width 5' 6" x depth 5' 10"


310 sq/ft width 22' 2" x depth 14'

Porch - Front:

107 sq/ft width 14' 4" x depth 7' 6"

Powder Room:

46 sq/ft width 7' 4" x depth 6' 4"

Sun Room:

147 sq/ft width 12' 8" x depth 11' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

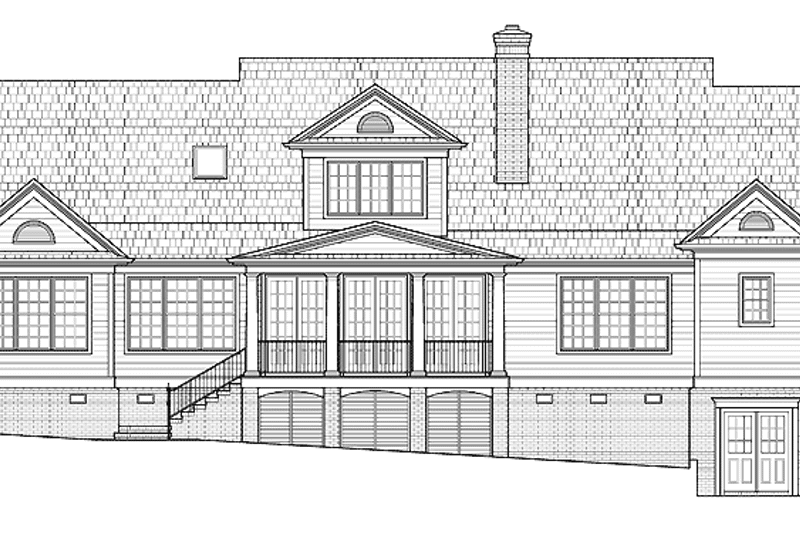

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
