PLAN 1017-26

Home > Style > Mediterranean

Key Specs

4928
sq ft

3
Beds

4.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 4928 sq ft and has 3 bedrooms and 4.5 bathrooms.

Floor Plans

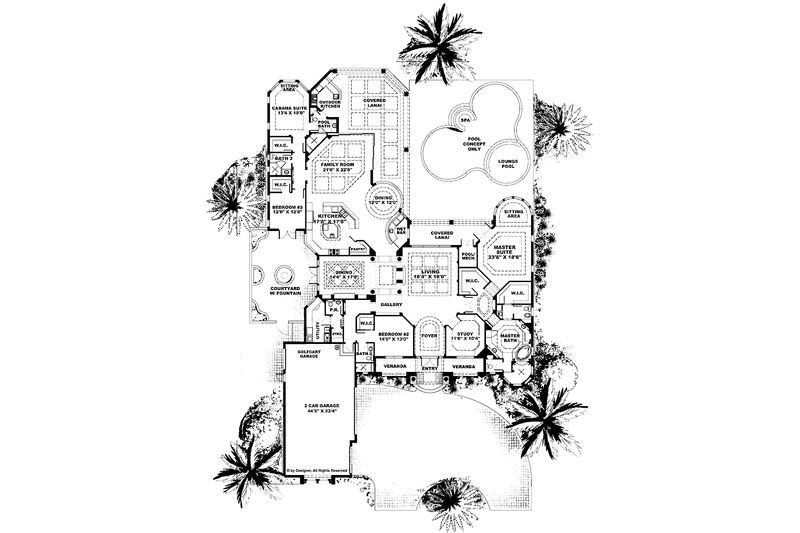

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 139' 10"

Height : 27' 2"

Width : 89' 4"

Area

First Floor: 4928 sq/ft height 11'

Garage: 1065 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Family Room Keeping Room

Open Floor Plan

Rooms

Bedroom 2:

182 sq/ft width 13' x depth 14'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Dinette:

144 sq/ft width 12' x depth 12'

Dining Room:

243 sq/ft width 14' 4" x depth 17'

Family Room:

112 sq/ft width 12' 4" x depth 9' 1"

Garage:

1030 sq/ft width 23' 4" x depth 44' 2"

Kitchen:

312 sq/ft width 17' 8" x depth 17' 8"

Living Room:

329 sq/ft width 18' 4" x depth 18'

Master Bedroom:

437 sq/ft width 23' 8" x depth 18' 6"

Study:

118 sq/ft width 11' 6" x depth 10' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

CAD Set:
$2000.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$2000.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$2000.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$90.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
