PLAN 413-124

Photographs may show modified designs.

Save
Home  /  Style  /  Tudor

Key Specs


Plan Sq Ft

4934
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

4
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Additional Construction Sets
$100.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$2400.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Wow! Cost to Build Reports Only $4.99 with Code CTBHOLIDAY (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 413-124

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description


Just picture yourself living in this amazing Queen Anne, Victorian Tudor style home. Imagine relaxing in the downstairs library, or in the Roman-style bath in the downstairs master suite. Or try to imagine family mealtime in the gourmet kitchen, or family movie night in the large upstairs media room. Other popular features in this home include a wine cellar, formal dining space, a keeping room and an open terrace in back. There are two separate garages, a single-car space and one with 2-car dimensions.

Full Specs & Features


Dimension

Depth : 69' 3"

Height : 40' 6"

Width : 89' 7"

Area

First Floor: 2948 sq/ft

Second Floor: 1986 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 16:12

Secondary Pitch : 14:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Media Room

Play Flex Room

Storage Area

Wine Cellar

Garage Features

Oversized Garage

Side Entry Garage

Entryway

Friend S Entry

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

Bedroom 2:

187 sq/ft width 12' 6" x depth 15'

Bedroom 3:

168 sq/ft width 14' x depth 12'

Bedroom 4:

154 sq/ft width 12' 6" x depth 12' 4"

Dining Room:

195 sq/ft width 13' x depth 15'

Garage:

462 sq/ft width 21' x depth 22'

Garage Two:

252 sq/ft width 21' x depth 12'

Gathering Room:

347 sq/ft width 19' 4" x depth 18'

Kitchen:

301 sq/ft width 16' x depth 18' 10"

Master Suite:

278 sq/ft width 14' 8" x depth 19'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

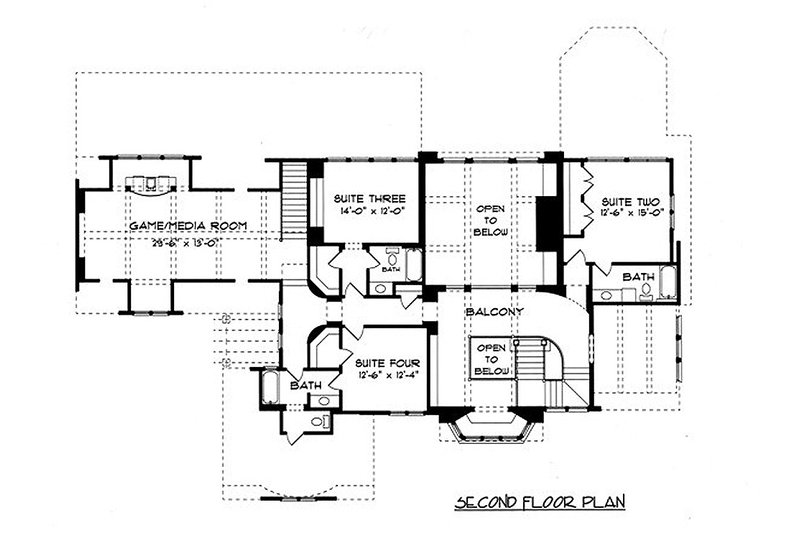

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$2400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$3380.00
5 printed plan sets mailed to you.
CAD Set:
$3380.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$200.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$400.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$600.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets:
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
