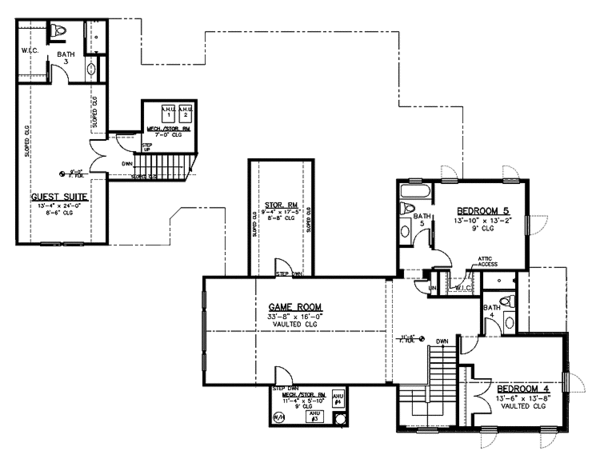

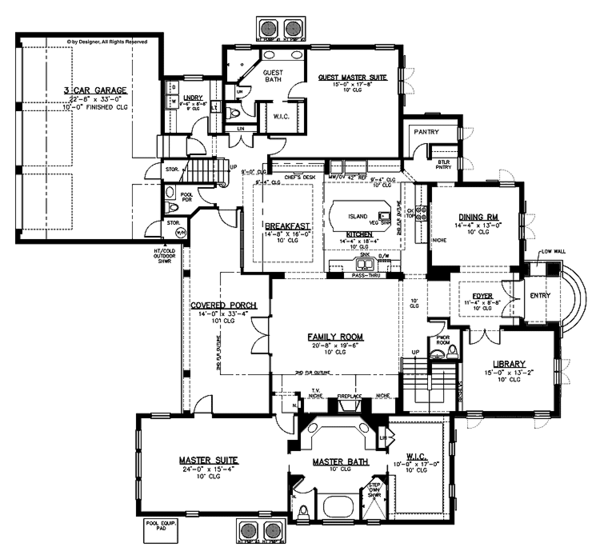

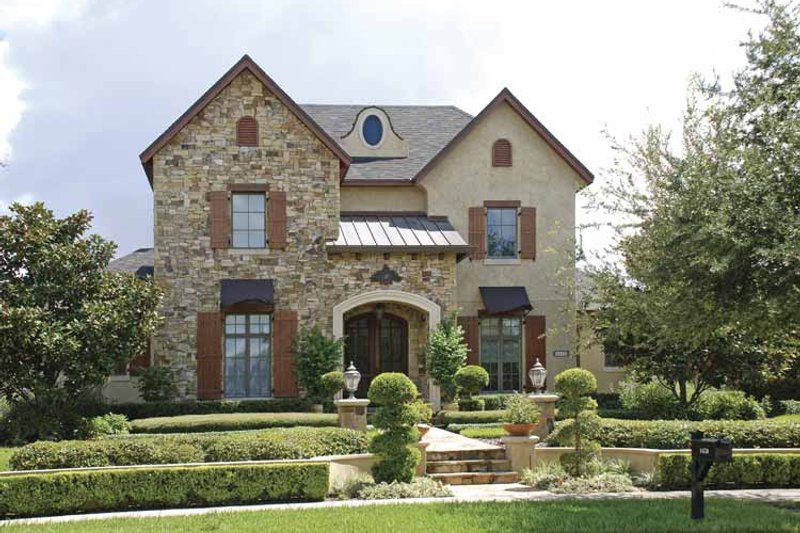

Designed for a front view to the park or lake across the street, this alley loaded 3-car garage, 2-story home offers two split master suites on the first floor, two children's bedrooms with game room above the main house and an oversized guest suite above the garage. Everyone will have enough space to retreat to their own room for privacy or congregate in the large open family room that overlooks the pool. The oversized kitchen, with pass-through to the family room, can handle those large parties and still function efficiently for meal preparations. Adding to the already large kitchen is a butler pantry worthy of much larger home. Wasted space is kept to a minimum by omitting halls and creating traffic-ways through the central areas. This all adds up to a home that meets the needs for a growing or declining family
184 sq/ft width 13' 6" x depth 13' 8"
182 sq/ft width 13' 10" x depth 13' 2"
234 sq/ft width 14' 8" x depth 16'
466 sq/ft width 14' x depth 33' 4"
186 sq/ft width 14' 4" x depth 13'
403 sq/ft width 20' 8" x depth 19' 6"
538 sq/ft width 33' 8" x depth 16'
748 sq/ft width 22' 8" x depth 33'
319 sq/ft width 13' 4" x depth 24'
262 sq/ft width 14' 4" x depth 18' 4"
82 sq/ft width 9' 6" x depth 8' 8"
197 sq/ft width 15' x depth 13' 2"
367 sq/ft width 24' x depth 15' 4"
265 sq/ft width 15' x depth 17' 8"
Master Walk-In Closet:
170 sq/ft width 10' x depth 17'
66 sq/ft width 11' 4" x depth 5' 10"
162 sq/ft width 9' 4" x depth 17' 5"
All plans are drawn at ¼” scale or larger and include :
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Stem Wall Foundation:
|Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
