Plan Description

With balance comes harmony, and this mediterranean home is all about just that. With its symetrically laid out split 2-car garages, and centrally located entry, this plan starts down the path of equality. There's no right and wrong here, just agreement between left and right. Presented with a symetrical elevation, you can expect a certain amount of formality within the layout, but not so much that this plan won't let you enjoy its offerings of the rear yard area. Straight through views from the foyer to the pool set the tone while the expansive rear porch provides more than adequate outdoor entertaining space. Two sets of stairs lend to the left and right balancing act of circulation between floors.

Full Specs & Features


Depth : 121' 8"

Height : 33' 10"

Width : 95'


First Floor: 4876 sq/ft height 12'

Garage: 1357 sq/ft height 12'

Second Floor: 1623 sq/ft height 12'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Concrete

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Guest Suite

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Storage Area

Outdoor Spaces

Covered Front Porch

Covered Rear Porch



168 sq/ft width 14' x depth 12'

Bedroom 3:

186 sq/ft width 13' 4" x depth 14'

Bedroom 4:

185 sq/ft width 14' 8" x depth 12' 8"

Bedroom 5:

185 sq/ft width 14' 8" x depth 12' 8"


144 sq/ft width 12' x depth 12'

Covered Porch:

250 sq/ft width 15' 4" x depth 16' 4"

Dining Room:

195 sq/ft width 15' x depth 13'

Family Room:

454 sq/ft width 22' x depth 20' 8"


106 sq/ft width 13' 4" x depth 8'

Game Room:

401 sq/ft width 22' 4" x depth 18'


705 sq/ft width 30' 8" x depth 23'

Garage Two:

529 sq/ft width 23' x depth 23'

Grand Room:

303 sq/ft width 21' 8" x depth 14'

Guest Suite:

182 sq/ft width 14' x depth 13'


214 sq/ft width 15' x depth 14' 4"


191 sq/ft width 14' 4" x depth 13' 4"

Master Bathroom:

126 sq/ft width 8' x depth 15' 10"

Master Suite:

423 sq/ft width 22' 8" x depth 18' 8"

Master Walk-In Closet:

300 sq/ft width 17' 8" x depth 17'

Study - Upper:

112 sq/ft width 14' x depth 8'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

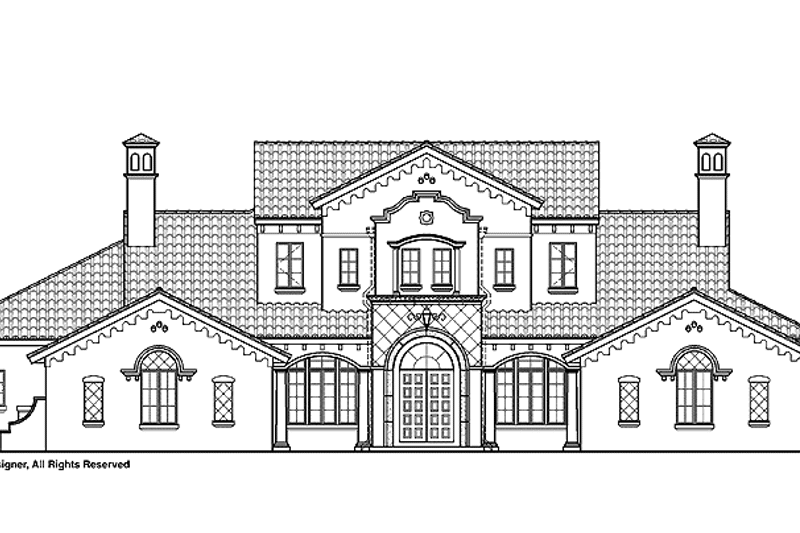

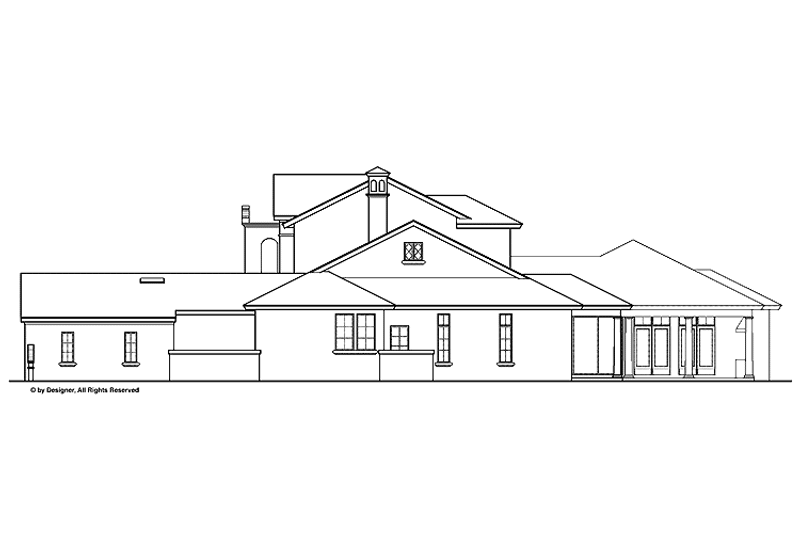

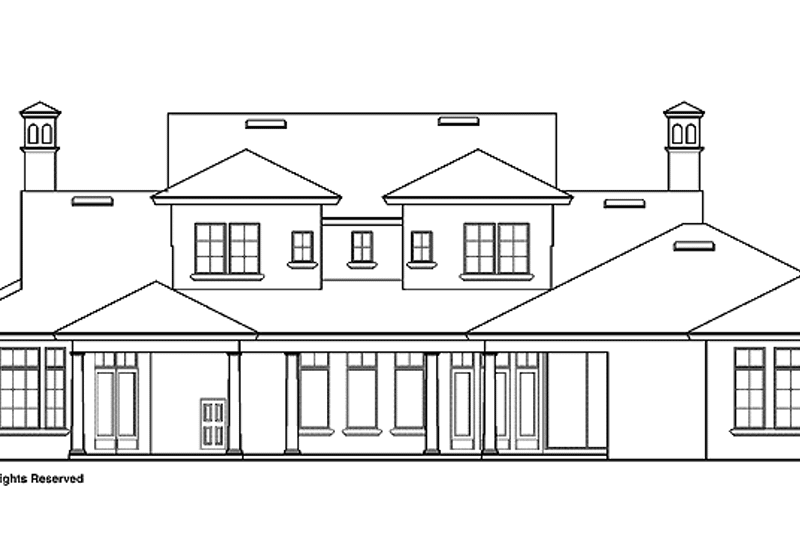

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

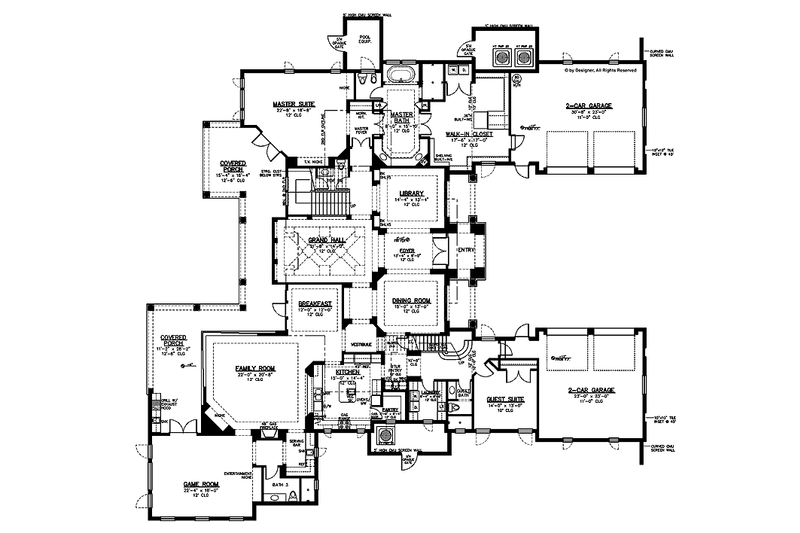

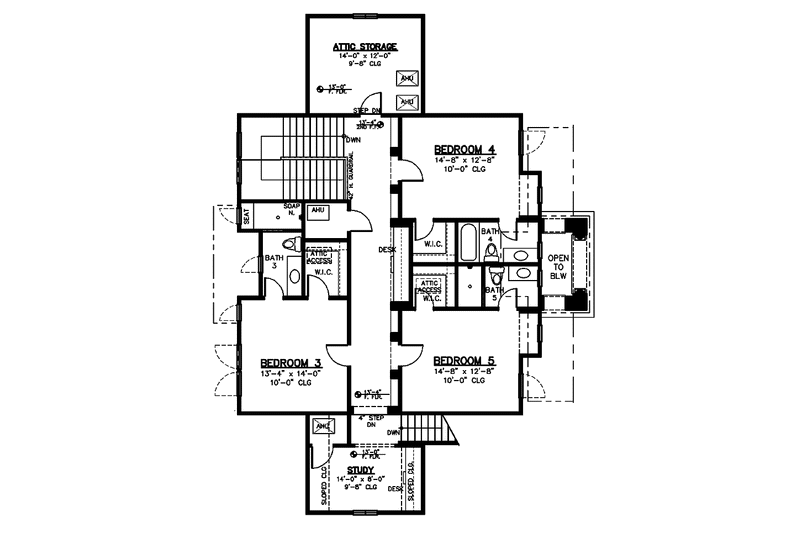

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
