PLAN 417-632

Mediterranean Exterior - Front Elevation Plan #417-632

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $1620.00
You save $180.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-632

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

This home is classically Mediterranean, with its stucco facade, sprawling layout, and expansive rear view from within. Bedrooms have been split to the far sides of the first floor with three on the left--sharing a full bath, but with the pool bath nearby as well--and the master suite occuping the right wing. Living areas are clustered in the center, making gathering family and friends together for any occasion a breeze. A guest suite and game room are the attractions on the second level, along with a spacious loft area.

Floor Plans

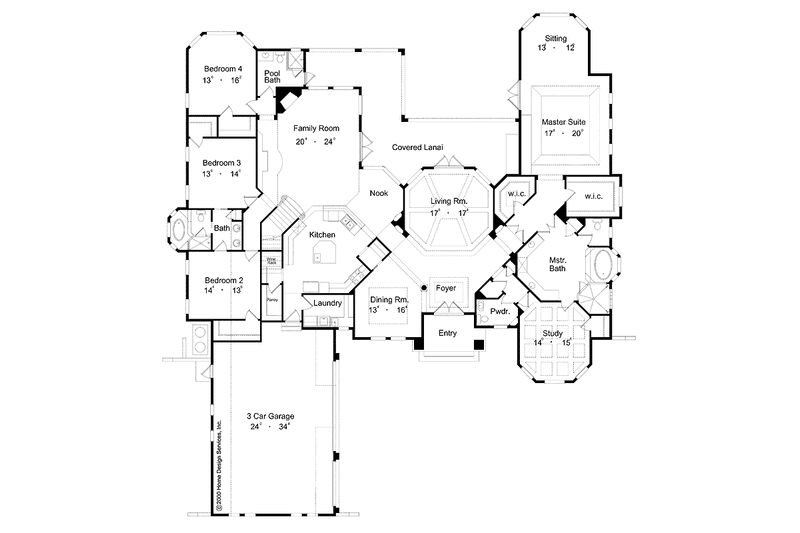

Floor Plan - Main Floor Plan

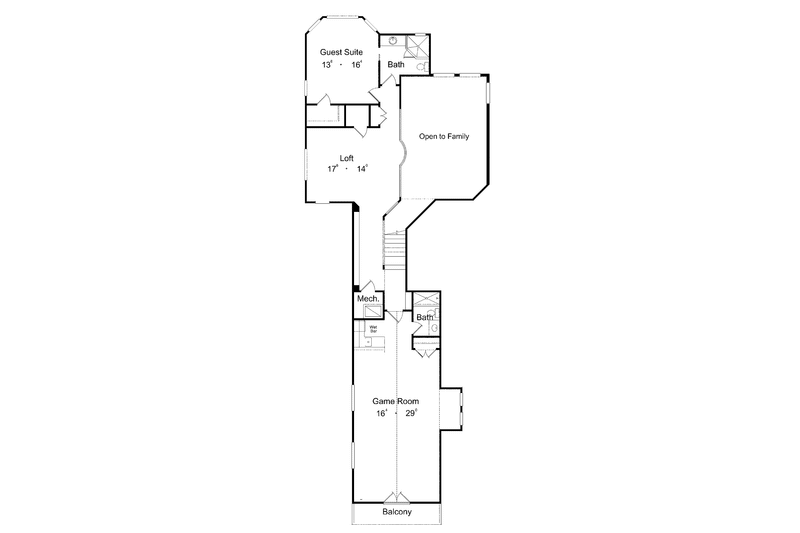

Floor Plan - Upper Floor Plan

Full Specs & Features

Depth : 100' 8"
Height : 30'
Width : 91'
First Floor: 4257 sq/ft
Second Floor: 1468 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Outdoor Spaces
Outdoor Kitchen Grill

3rd BR Closet:

22 sq/ft width 5' 8" x depth 4'

Bathroom 2:

114 sq/ft width 14' 4" x depth 8'

Bathroom 3:

67 sq/ft width 9' 2" x depth 7' 4"

Bedroom 2:

193 sq/ft width 14' 4" x depth 13' 6"

Bedroom 2 Closet:

37 sq/ft width 9' 4" x depth 4'

Bedroom 3:

186 sq/ft width 13' 4" x depth 14'

Bedroom 3 Closet:

37 sq/ft width 9' 4" x depth 4'

Bedroom 4:

213 sq/ft width 13' 4" x depth 16'

Bedroom 4 Closet:

22 sq/ft width 5' 8" x depth 4'

Bedroom 5:

223 sq/ft width 13' 8" x depth 16' 4"

Bedroom 5 Closet:

28 sq/ft width 7' 2" x depth 4'

Breakfast Room:

90 sq/ft width 9' x depth 10'

Den/Office or Bedroom 1:

219 sq/ft width 14' x depth 15' 8"

Dining Room:

235 sq/ft width 13' 10" x depth 17'


67 sq/ft width 9' 8" x depth 7'


880 sq/ft width 24' x depth 36' 8"


326 sq/ft width 18' 8" x depth 17' 6"

Laundry Room:

65 sq/ft width 10' x depth 6' 6"

Living Room:

306 sq/ft width 17' 8" x depth 17' 4"

Master Bathroom:

383 sq/ft width 20' x depth 19' 2"

Master Bedroom:

559 sq/ft width 17' 8" x depth 31' 8"

Master Closet:

85 sq/ft width 10' 8" x depth 8'

Porch - Front:

73 sq/ft width 10' x depth 7' 4"

Porch - Left:

133 sq/ft width 19' x depth 7'

Porch - Rear:

346 sq/ft width 31' 6" x depth 11'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.
