PLAN 1017-48

Key Specs

6162
sq ft

4
Beds

4.5
Baths

3
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Note: First story walls are constructed of concrete block; upper stories are concrete block / Wood 2 X 6 combination

Floor Plans

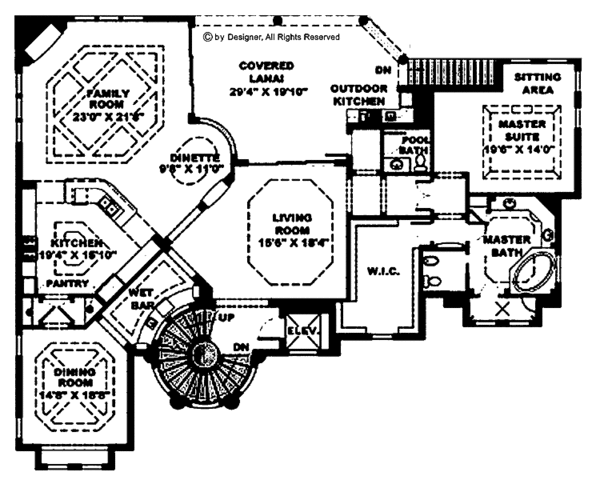

Floor Plan - Main Floor Plan

Reverse

Mediterranean Floor Plan - Main Floor Plan Plan #1017-48

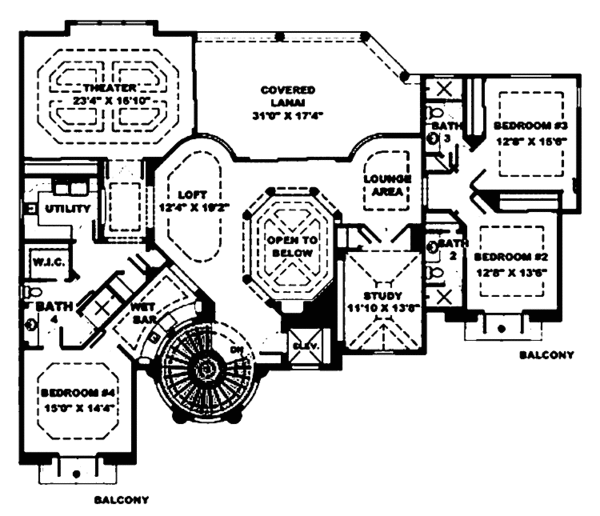

Floor Plan - Upper Floor Plan

Reverse

Mediterranean Floor Plan - Upper Floor Plan Plan #1017-48

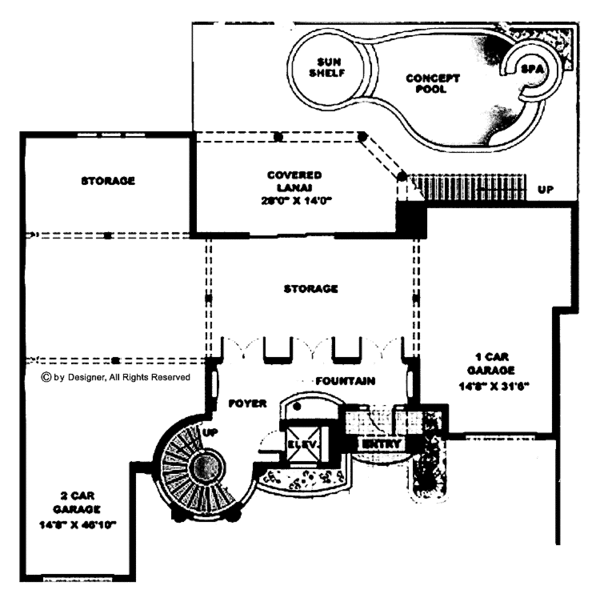

Floor Plan - Other Floor Plan

Reverse

Mediterranean Floor Plan - Other Floor Plan Plan #1017-48

Full Specs & Features

Dimension

Depth : 62' 2"
Height : 45' 6"
Width : 77' 4"

Area

First Floor: 486 sq/ft
Garage: 2575 sq/ft
Second Floor: 2975 sq/ft
Third Floor: 2701 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Master Sitting Area
Open Floor Plan
Upstairs Laundry
Vaulted / Cathedral Ceilings
Workshop

Outdoor Spaces

Balcony

Wheelchair Adaptable

Rooms

Bedroom 2:

171 sq/ft width 12' 8" x depth 13' 6"

Bedroom 3:

196 sq/ft width 12' 8" x depth 15' 6"

Bedroom 4:

214 sq/ft width 15' x depth 14' 4"

Dining Room:

273 sq/ft width 14' 8" x depth 18' 8"

Family Room:

498 sq/ft width 23' x depth 21' 8"

Garage:

686 sq/ft width 14' 8" x depth 46' 10"

Garage Two:

462 sq/ft width 14' 8" x depth 31' 6"

Kitchen:

306 sq/ft width 19' 4" x depth 15' 10"

Living Room:

284 sq/ft width 15' 6" x depth 18' 4"

Loft:

236 sq/ft width 12' 4" x depth 19' 2"

Master Suite:

273 sq/ft width 19' 6" x depth 14'

Study - Upper:

161 sq/ft width 11' 10" x depth 13' 8"

Theatre Room:

392 sq/ft width 23' 4" x depth 16' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $2400.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $2400.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $2400.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets : $90.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $75.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.
