PLAN 1058-222
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

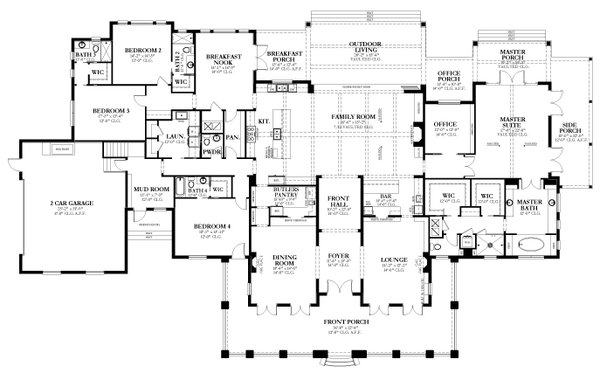

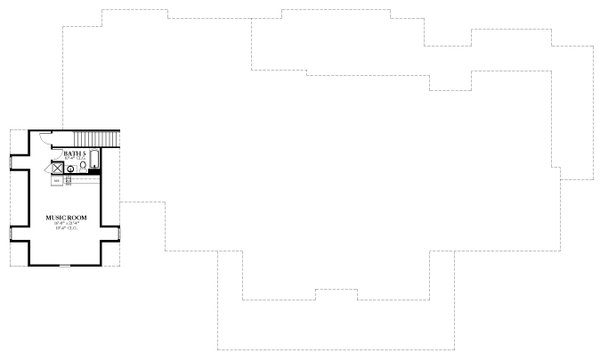

Floor Plans
Full Specs & Features
Dimension
Depth : 81' 4"
Height : 29' 11"
Width : 139' 6"
Area
Garage : 822 sq/ft
Main Floor : 5582 sq/ft
Porch : 1576 sq/ft
Upper Floor : 608 sq/ft
Ceiling
Ceiling Details : Vaulted Ceilings. 14'-0" and 12'-0" Ceilings.
Garage Ceiling : 8' 8"
Main Ceiling : 14'
Roof
Primary Pitch : 7/12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco/ Siding/ Stone
Framing : CMU, 2x6 Frame
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Wet Bar
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Additional Half Bath
Empty Nester
Suited For Vacation Home
Wheelchair Adaptable
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$5500.00
$5710.00
$5900.00
$5900.00
Foundation
$0.00
Framing
$0.00
Additional Options
$300.00
$70.00
$2950.00
$29500.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
