PLAN 1017-46

Home > Style > Mediterranean

Key Specs

7441
sq ft

4
Beds

5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed.

Floor Plans

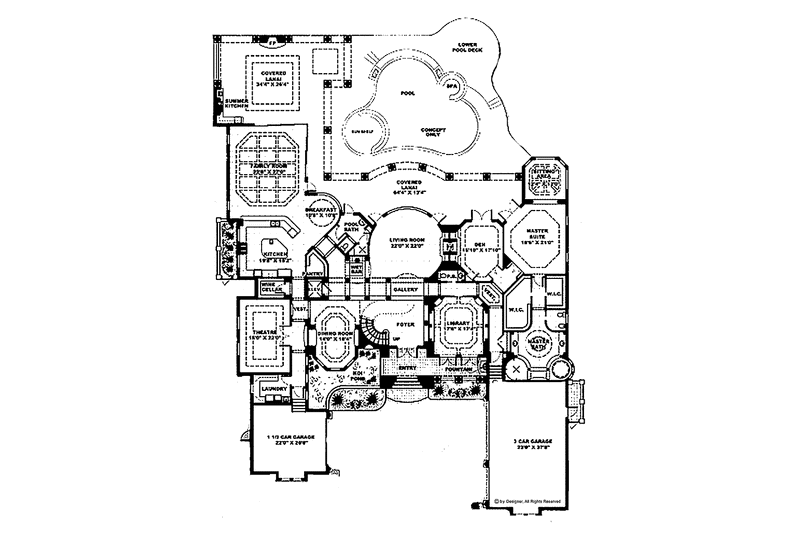

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

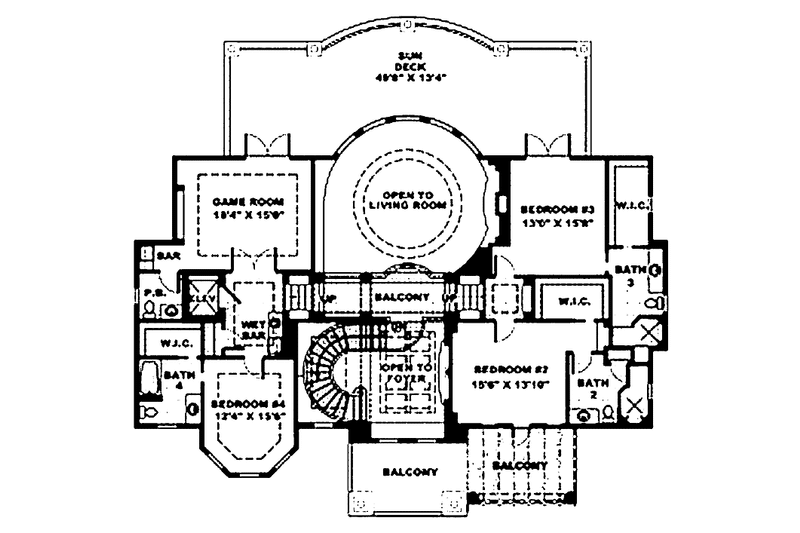

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 143' 10"

Height : 36' 3"

Width : 106'

Area

First Floor: 5482 sq/ft

Garage: 1511 sq/ft

Second Floor: 1959 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Loft

Master Sitting Area

Open Floor Plan

Unfinished Future Space

Vaulted / Cathedral Ceilings

Workshop

Outdoor Spaces

Balcony

Wheelchair Adaptable

Rooms

Bedroom 2:

214 sq/ft width 15' 6" x depth 13' 10"

Bedroom 3:

211 sq/ft width 13' 6" x depth 15' 8"

Bedroom 4:

191 sq/ft width 12' 4" x depth 15' 6"

Den:

282 sq/ft width 15' 10" x depth 17' 10"

Dining Room:

256 sq/ft width 14' x depth 18' 4"

Family Room:

612 sq/ft width 22' 8" x depth 27'

Game Room:

274 sq/ft width 18' 4" x depth 15'

Garage:

866 sq/ft width 23' x depth 37' 8"

Garage Two:

440 sq/ft width 22' x depth 20'

Kitchen:

357 sq/ft width 19' 8" x depth 18' 2"

Lanai:

904 sq/ft width 34' 4" x depth 26' 4"

Library:

303 sq/ft width 17' 6" x depth 17' 4"

Living Room:

484 sq/ft width 22' x depth 22'

Master Suite:

388 sq/ft width 18' 6" x depth 21'

Theatre Room:

330 sq/ft width 15' x depth 22'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

CAD Set:
$5525.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$5525.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$5525.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
