PLAN 118-123

Photographs may show modified designs.

Save
  • Jump to:
  • All (3)
  • Floor plans (1)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

960
sq ft

Plan Bedrooms

0
Beds

Plan Bathrooms

0
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Audio Video Design
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$425.00 NOW $361.25
You save $63.75 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.



Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 118-123

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

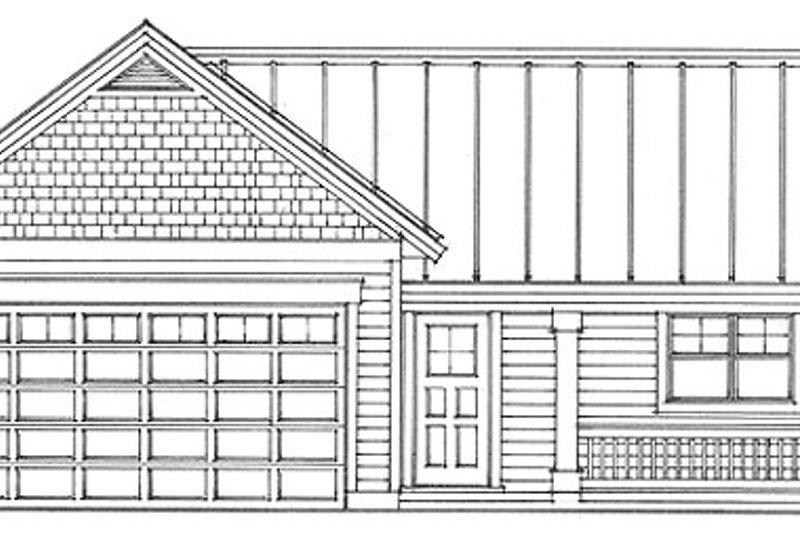

This RV Garage combined with a Single Car Garage plan combines space for recreational vehicle as well as the family or vintage vehicle, all within an economical footprint. \ \ The RV garage portion boasts a ten foot plus ceiling height, perfect for storing either a RV or an over-sized boat, or providing car jacking clearance height for the car enthusiast. Plans accommodate a rear overhead garage door for drive through ease. \ \ The side load Single Car Garage portion of this plan has an eight foot ceiling height and boasts ample work bench space. Add a partition wall to separate the garage from the workshop and install heating to enable comfortable year round use.

Full Specs & Features


Dimension

Depth : 30'

Height : 19'

Width : 40'

Area

Garage: 960 sq/ft

Porch: 80 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 8'

Main Ceiling : 10'

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Load : 47

Roof Type : metal roof

Exterior Wall Framing

Exterior Wall Finish : Horizontal Siding

Framing : 2"x6"

Insulation : 20

Garage Features

Front Entry Garage

Oversized Garage

RV Garage

Side Entry Garage

Split Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Code Compliance

Irc 2006

Nbcc

Rooms

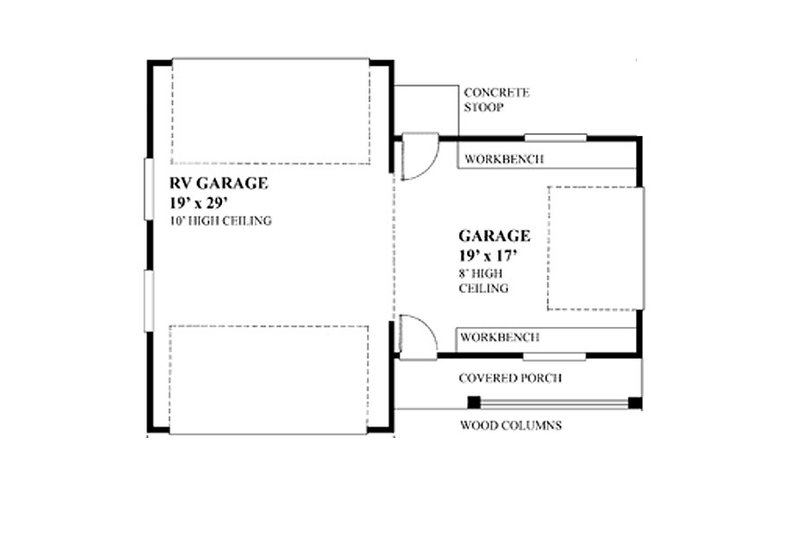

Garage:

551 sq/ft width 19' x depth 29'

Garage Two:

323 sq/ft width 19' x depth 17'

What's Included In This Plan Set


Plans are typically drawn to ¼” scale and include:
  • Cover Sheet: Cover sheet with rendering and art floor plans
  • Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
  • Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
  • Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
  • Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
  • Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
  • Electrical Plan(s): Electrical fixtures / switches / smoke alarms by location only on floor plans.
  • Detail Sheet(s): Details as required.
  • Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
  • Structural Information: Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
  • Site Plan(s): Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
Other notes: Plans are engineered by a structural engineer, but not stamped or sealed; you may need to update for your location. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf). Floor live load 40 psf. Assumed soil bearing capacity 1560 psf. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$361.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design:
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
