Full Specs & Features
Depth : 54'
Height : 16'
Width : 50'
Basement Unfinished: 1160 sq/ft

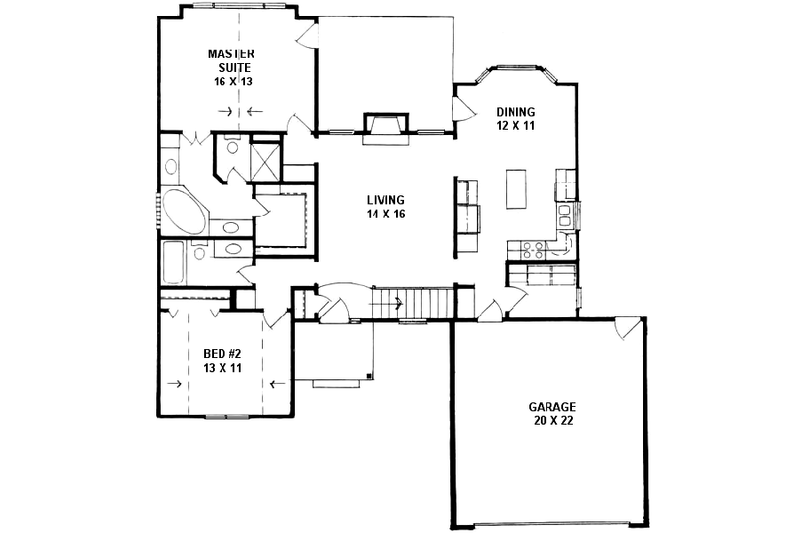

First Floor: 1287 sq/ft
Garage: 440 sq/ft
Main Ceiling : 8'
Primary Pitch : 6:12
Roof Framing : Truss
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Stucco
Framing : 2"x4"
Walk In Closet
Additional Room Features
Great Room Living Room
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
What's Included In This Plan Set
- 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".
- 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.
- 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
- Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
- Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
- Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
- Building Cross Section - Complete front to back cross section with basic framing details.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
