Full Specs & Features
Depth : 46'
Height : 18'
Width : 62'
Basement Unfinished: 1200 sq/ft height 9'
First Floor: 1357 sq/ft height 9'
Garage: 640 sq/ft height 9'
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Formal Living Room / Parlor
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Covered Front Porch
120 sq/ft width 12' x depth 10'
100 sq/ft width 10' x depth 10'
132 sq/ft width 11' x depth 12'
660 sq/ft width 30' x depth 22'
224 sq/ft width 14' x depth 16'
168 sq/ft width 12' x depth 14'
What's Included In This Plan Set
- 1/4" scale fully dimensioned Foundation/Basement Plan - Also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. Extra Items like fireplaces and wet bars are indicated as "optional".

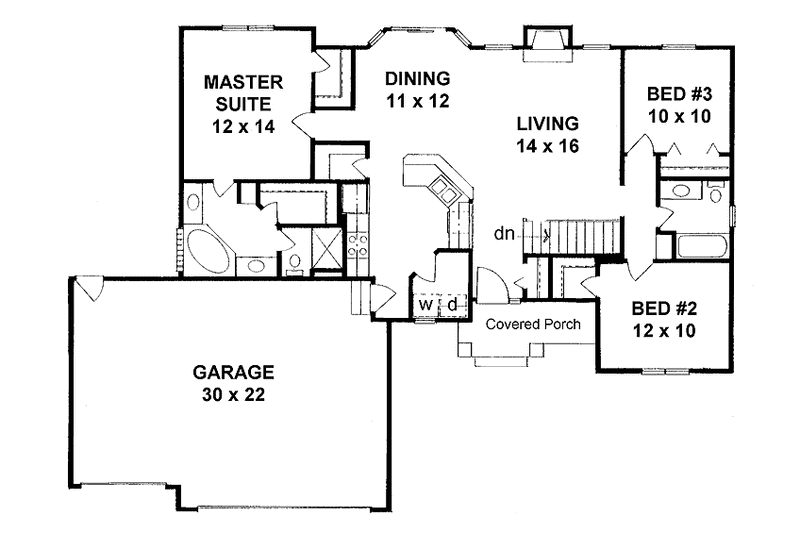

- 1/4" scale fully dimensioned Floor Plan - In order to simplify construction, We use the most comprehensive dimensioning method in the industry.

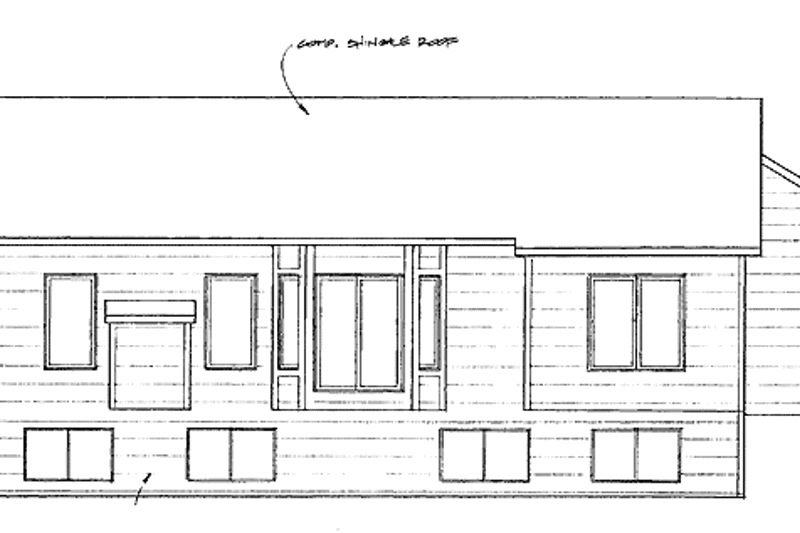

- 1/4" scale Front, Side and Rear Elevations - 1/4 inch scale elevations all the way around clarifies construction and helps with estimating materials and costs.
- Roof plan - An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.
- Electrical - Shown right on the floor plan, switches and outlets are located using standards of the National Electrical Code.
- Kitchen Cabinet Details, Wall section, Stair and Fireplace Details - All drawn 1/2" scale provide easy viewing of the specific area's.
- Building Cross Section - Complete front to back cross section with basic framing details.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
