Full Specs & Features
Depth : 58' 4"
Height : 20' 8"
Width : 55' 8"
First Floor: 1975 sq/ft
Garage: 443 sq/ft height 8'
Porch: 202 sq/ft height 10'
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Vaulted / Cathedral Ceilings
Front Entry Garage
Covered Rear Porch
134 sq/ft width 11' 2" x depth 12'
132 sq/ft width 12' x depth 11'
202 sq/ft width 26' x depth 10'
113 sq/ft width 11' 4" x depth 10'
263 sq/ft width 17' 6" x depth 15'
137 sq/ft width 10' x depth 13' 8"
280 sq/ft width 14' x depth 20'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

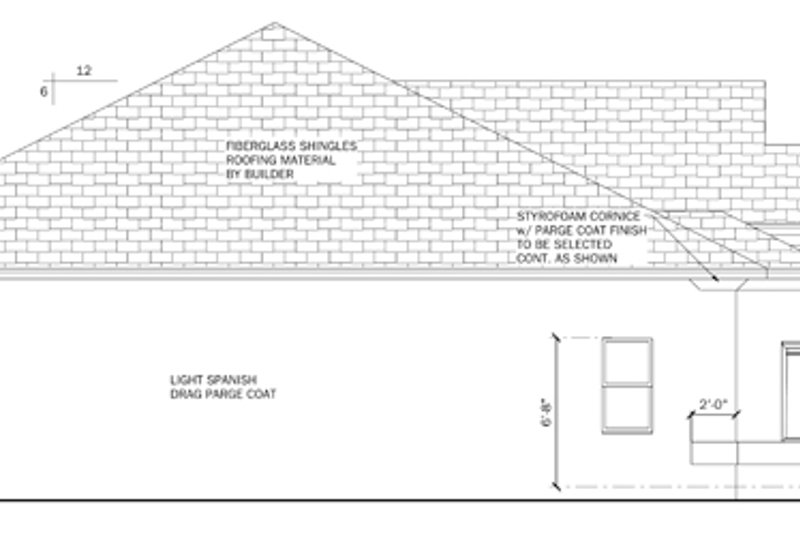

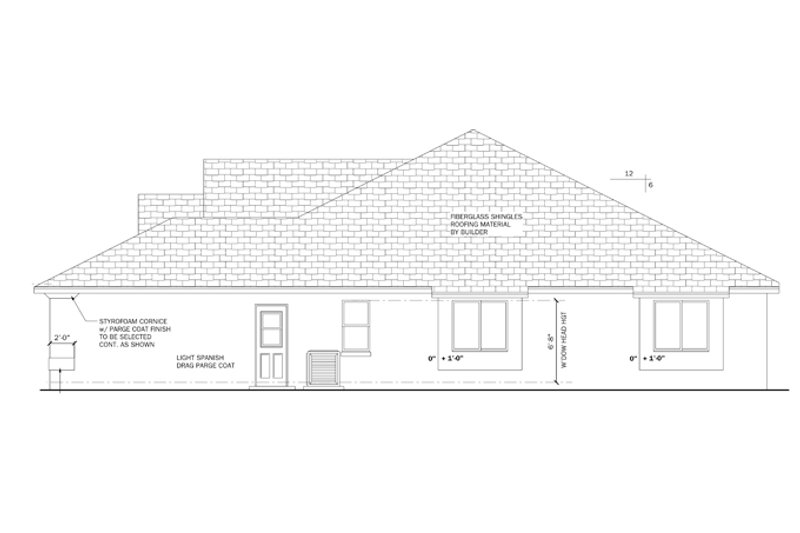

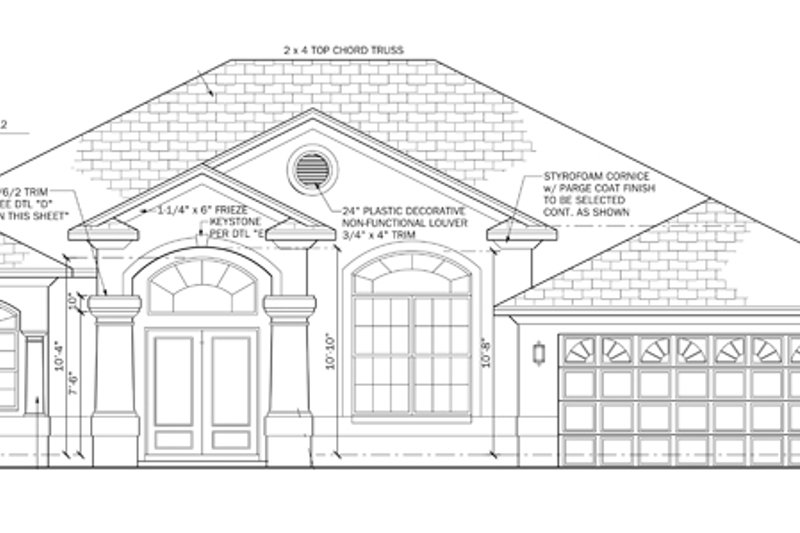

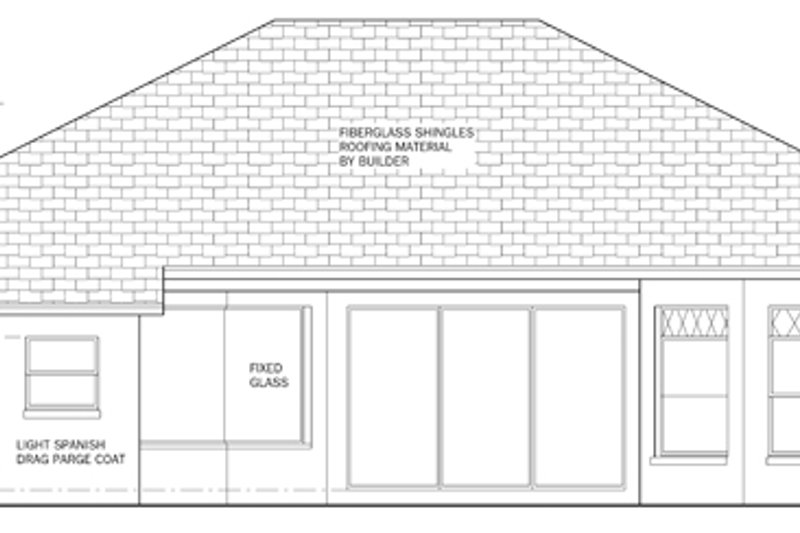

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

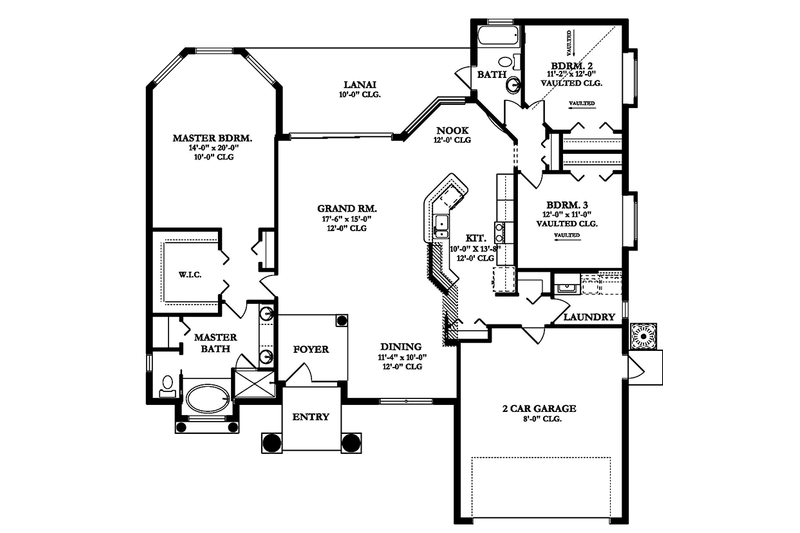

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
