PLAN 1058-67
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 65'
Height : 19' 8"
Width : 40' 8"
Area
First Floor: 2000 sq/ft height 9'
Garage: 462 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
Rooms
Bedroom 2:
140 sq/ft width 11' 4" x depth 12' 4"
Bedroom 3:
140 sq/ft width 11' 4" x depth 12' 4"
Covered Front Entry:
52 sq/ft
Dining Room:
202 sq/ft width 18' 4" x depth 11'
Family Room:
208 sq/ft width 16' x depth 13'
Garage:
462 sq/ft width 19' 8" x depth 20' 8"
Kitchen:
160 sq/ft width 16' x depth 10'
Lanai:
117 sq/ft width 16' x depth 7'
Living Room:
245 sq/ft width 19' 4" x depth 12' 8"
Master Suite:
210 sq/ft width 14' x depth 15'
Nook:
96 sq/ft width 12' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

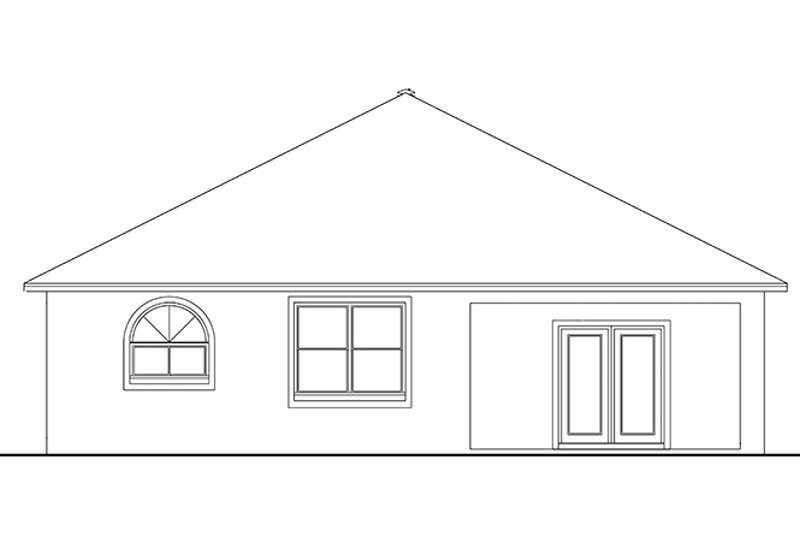

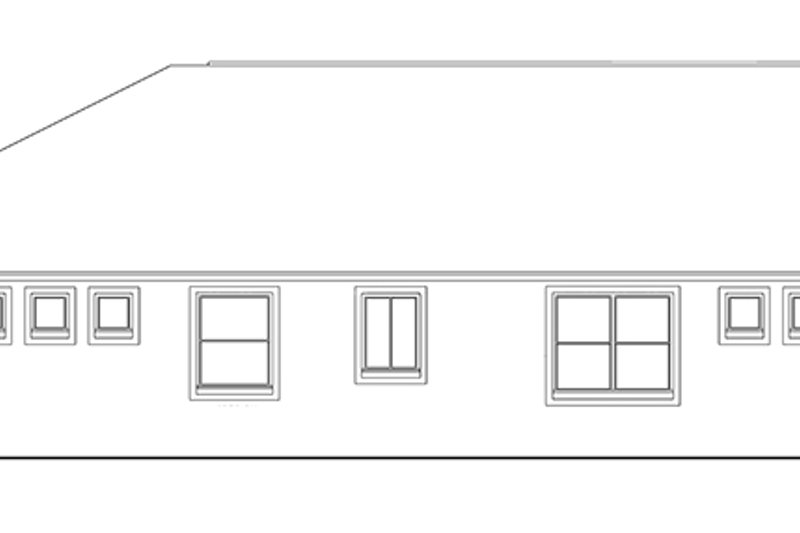

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

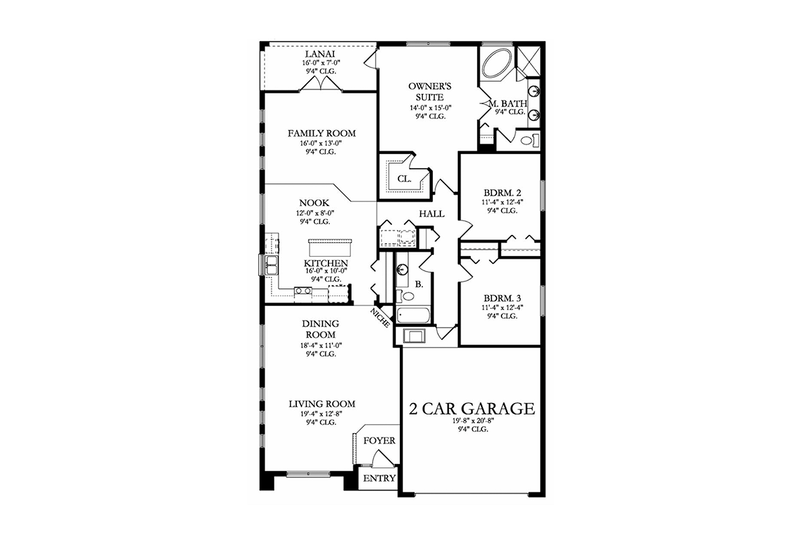

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1615.00
$1955.00
$1955.00
Foundation
$0.00
Framing
$0.00
Additional Options
$255.00
$42.50
$977.50
$85.00
$33.15
$85.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
