PLAN 1017-114

Key Specs


2297
sq ft

3
Beds

3.5
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


This plan is a country cottage home plan covered in cedar shakes! A very open floor plan with vaulted ceilings and covered lanai. This design also includes a covered front porch where you can enjoy a fresh glass of lemonade and some serious relaxing! Great for family get-togethers with the kitchen, dining and great room opened up together and a cozy fireplace to top it off. If a cottage home plan is what you are looking for, this plan might be the one for you.

Floor Plans

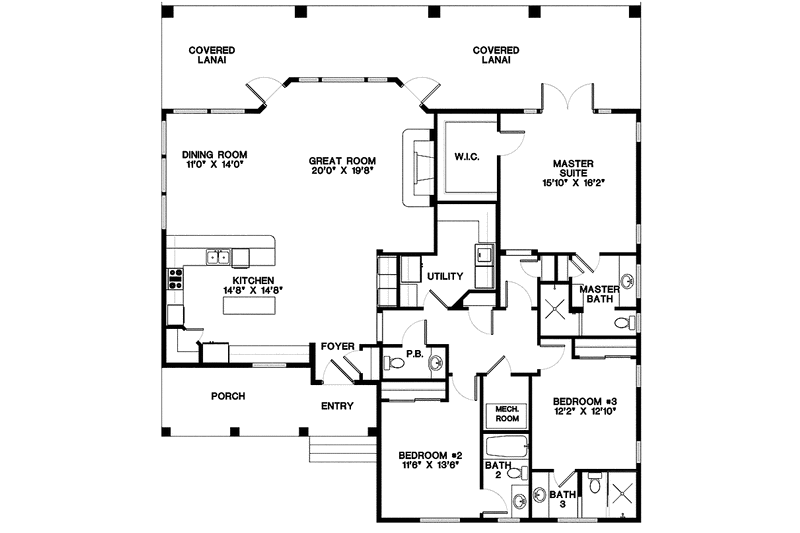

Floor Plan - Main Floor Plan

Full Specs & Features


Dimension
Depth : 60'
Height : 24' 11"
Width : 55' 8"
Area
First Floor: 2297 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x6
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

Bedroom 2:

155 sq/ft width 11' 6" x depth 13' 6"

Bedroom 3:

156 sq/ft width 12' 2" x depth 12' 10"

Dining Room:

154 sq/ft width 11' x depth 14'

Great Room:

393 sq/ft width 20' x depth 19' 8"

Kitchen:

215 sq/ft width 14' 8" x depth 14' 8"

Master Suite:

255 sq/ft width 15' 10" x depth 16' 2"

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

CAD Set :
$900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$900.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$900.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Additional Construction Sets :
$81.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$90.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
