PLAN 1017-115

Key Specs

2400
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This home plan is a good house design for a narrow, waterfront lot; it is slightly elevated with stem wall construction. It has 2,400 square feet of living space which incorporates four bedrooms and three baths. This home place also takes into consideration the rear views allowing the master bedroom, dinette, kitchen and great room all a front row seat!

Floor Plans

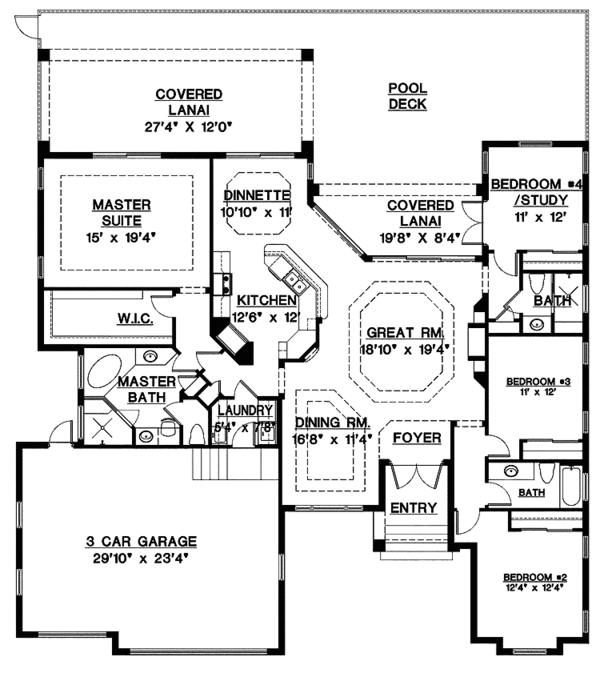

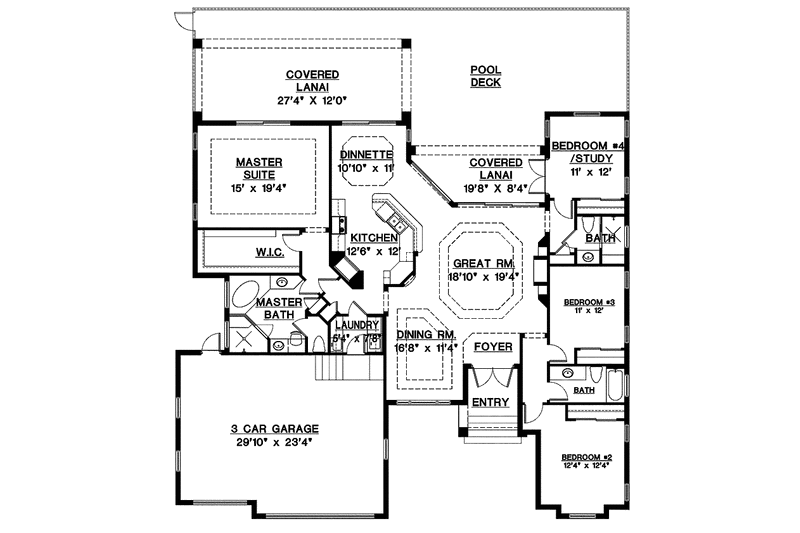

Floor Plan - Main Floor Plan

Reverse

Mediterranean Floor Plan - Main Floor Plan Plan #1017-115

Full Specs & Features

Dimension

Depth : 70' 4"
Height : 23' 9"
Width : 66' 6"

Area

First Floor: 2400 sq/ft
Garage: 726 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Formal Dining Room
Walk In Closet

Additional Room Features

Great Room Living Room
Main Floor Laundry

Outdoor Spaces

Courtyard
Covered Front Porch
Deck

Rooms

Bedroom 2:

152 sq/ft width 12' 4" x depth 12' 4"

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bedroom 4:

132 sq/ft width 11' x depth 12'

Dinette:

119 sq/ft width 10' 10" x depth 11'

Dining Room:

188 sq/ft width 16' 8" x depth 11' 4"

Garage:

696 sq/ft width 29' 10" x depth 23' 4"

Great Room:

364 sq/ft width 18' 10" x depth 19' 4"

Kitchen:

152 sq/ft width 12' 8" x depth 12'

Lanai:

327 sq/ft width 27' 4" x depth 12'

Lanai:

163 sq/ft width 19' 8" x depth 8' 4"

Laundry Room:

40 sq/ft width 5' 4" x depth 7' 8"

Master Suite:

289 sq/ft width 15' x depth 19' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

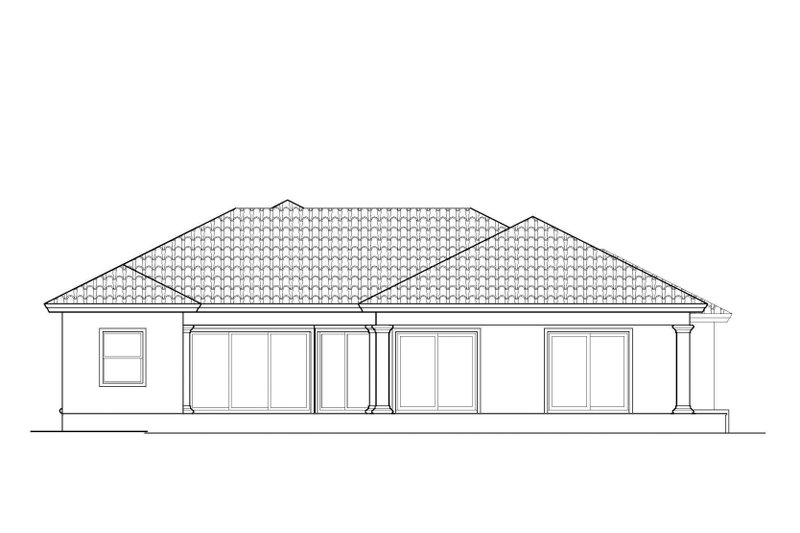

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $1000.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $1000.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1000.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Block:
$0.00

Block

Additional Options

Additional Construction Sets : $90.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $75.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
