PLAN 1017-116
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
839
sq ft
1
Beds
1
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
Use Code CTB2026
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1017-116
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

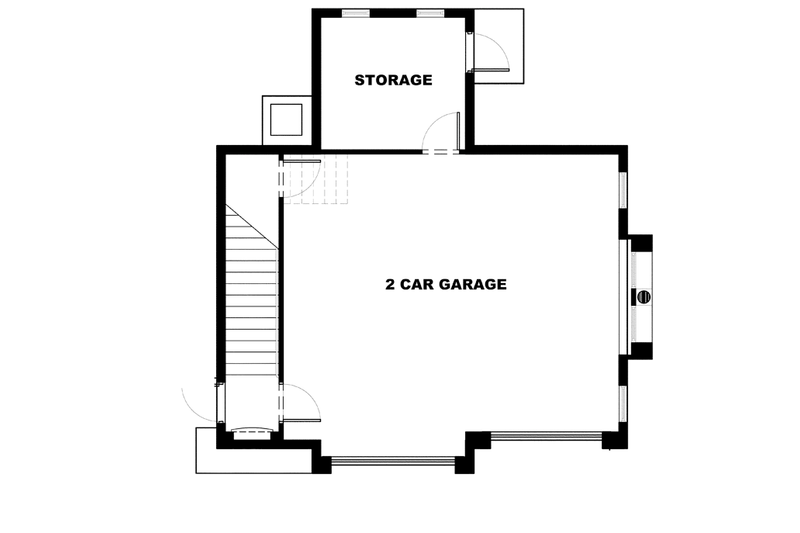

Floor Plan - Main Floor

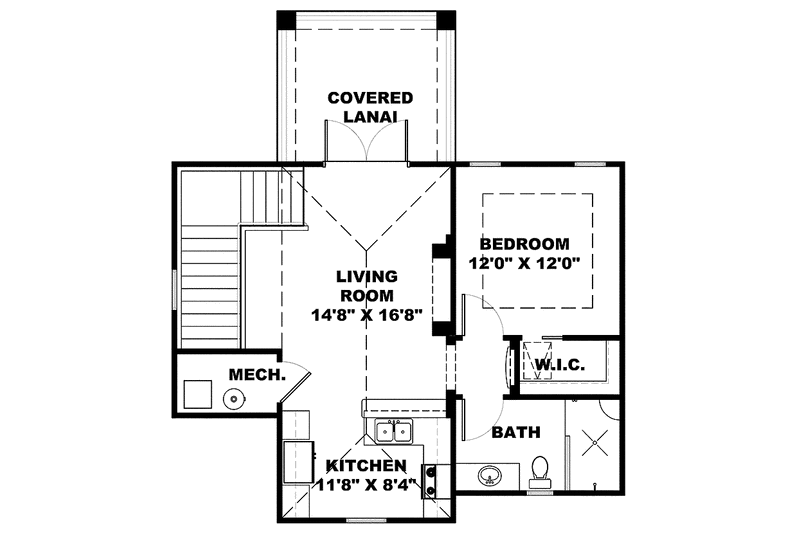

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 37' 4"
Height: 30' 8"
Width: 35'
Area
Garage: 869 sq/ft height 11' 2"
Second Floor: 839 sq/ft
Roof
Primary Pitch: 6:12
Roof Framing: Truss
Roof Type: Clay Tile
Exterior Wall Framing
Exterior Wall Finish: Stucco
Bedroom Features
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Additional Room Features
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
Covered Rear Porch
Rooms
Bedroom:
144 sq/ft width 12' x depth 12'
Covered Rear Lanai:
143 sq/ft
Garage:
603 sq/ft width 27' x depth 22' 4"
Garage Storage:
124 sq/ft width 11' 8" x depth 10' 8"
Kitchen:
97 sq/ft width 11' 8" x depth 8' 4"
Living Room:
244 sq/ft width 14' 8" x depth 16' 8"
What's Included In This Plan Set
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Plans are typically drawn to ¼” scale and include:
- Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
- Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
- Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
- Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
Plan Set
$600.00
$600.00
Foundation
$0.00
Additional Options
$90.00
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
