PLAN 1069-17
Key Specs
2479
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Floor Plans

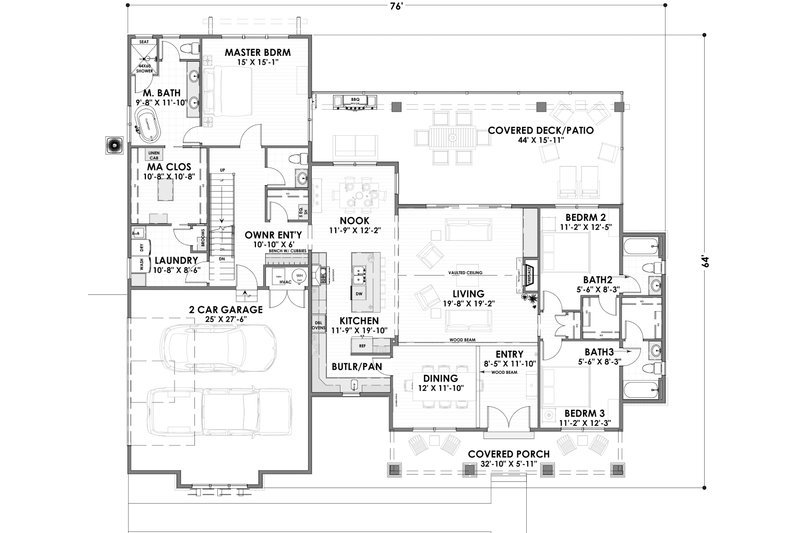

Floor Plan - Main Floor Plan
Floor Plan - Lower Floor Plan

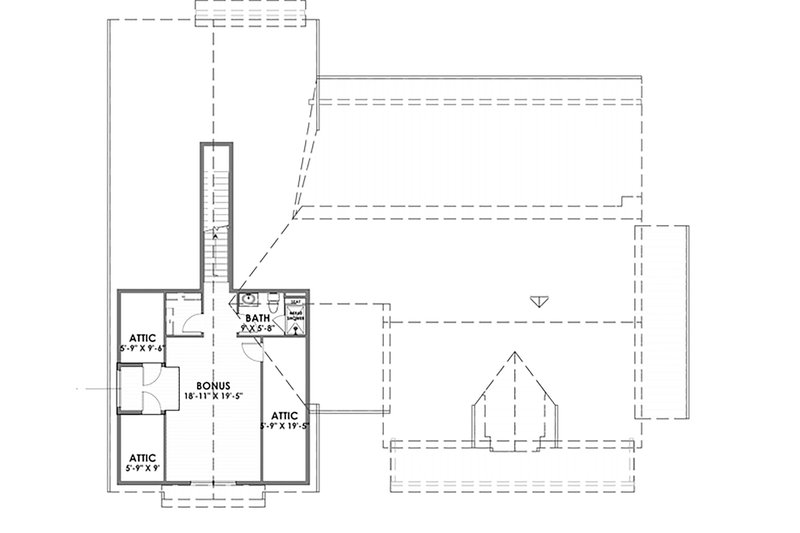

Floor Plan - Upper Floor Plan
Full Specs & Features
Dimension
Depth : 64'
Height : 25' 8"
Width : 76'
Height : 25' 8"
Width : 76'
Area
Basement : 1790 sq/ft
Bonus : 444 sq/ft
Garage : 842 sq/ft
Lower Floor : 2112 sq/ft
Main Floor : 2479 sq/ft
Bonus : 444 sq/ft
Garage : 842 sq/ft
Lower Floor : 2112 sq/ft
Main Floor : 2479 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8/12
Roof Framing : Truss/Stick
Roof Type : Shingles/Metal
Secondary Pitch : 12/12
Roof Framing : Truss/Stick
Roof Type : Shingles/Metal
Secondary Pitch : 12/12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2x6
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Butler's Pantry
Eating Bar
Additional Room Features
Hobby Rec Room Game Room
Unfinished Future Space
Wet Bar
Unfinished Future Space
Wet Bar
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Rooms
Bathroom 2:
width 5' 6" x depth 8' 3"
Bathroom 3:
width 5' 6" x depth 8' 3"
Bedroom 2:
width 11' 2" x depth 12' 5"
Bedroom 3:
width 11' 2" x depth 12' 3"
Covered deck/patio:
width 44' x depth 15' 11"
Covered Porch:
width 32' 10" x depth 5' 11"
Dining:
width 12' x depth 11' 10"
Entry:
width 8' 5" x depth 11' 10"
Garage:
width 25' x depth 27' 6"
Kitchen:
width 11' 9" x depth 19' 10"
Laundry:
width 10' 8" x depth 8' 6"
Living:
width 19' 8" x depth 19' 2"
Master Bath:
width 9' 8" x depth 11' 10"
Master Bedroom:
width 15' x depth 15' 1"
Master Closet:
width 10' 8" x depth 10' 8"
Nook:
width 11' 9" x depth 12' 2"
Owner Entry:
width 10' 10" x depth 6'
