Full Specs & Features
Depth : 80' 9"
Height : 31'
Width : 66'
First Floor: 2551 sq/ft height 8'
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
132 sq/ft width 12' x depth 11'
130 sq/ft width 13' x depth 10'
56 sq/ft width 8' x depth 7'
168 sq/ft width 12' x depth 14'
550 sq/ft width 22' x depth 25'
242 sq/ft width 11' x depth 22'
352 sq/ft width 22' x depth 16'
272 sq/ft width 17' x depth 16'
117 sq/ft width 9' 9" x depth 12'
300 sq/ft width 15' x depth 20'
66 sq/ft width 5' 6" x depth 12'
448 sq/ft width 32' x depth 14'
110 sq/ft width 11' x depth 10'
48 sq/ft width 6' x depth 8'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence

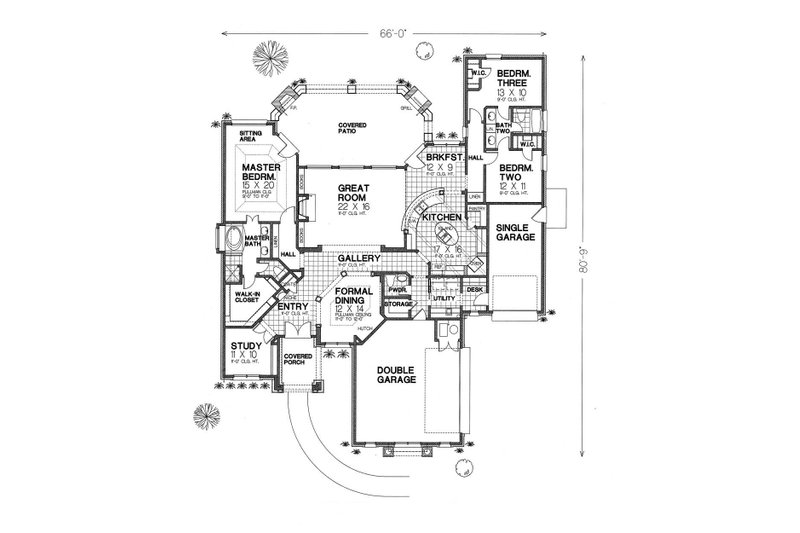

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

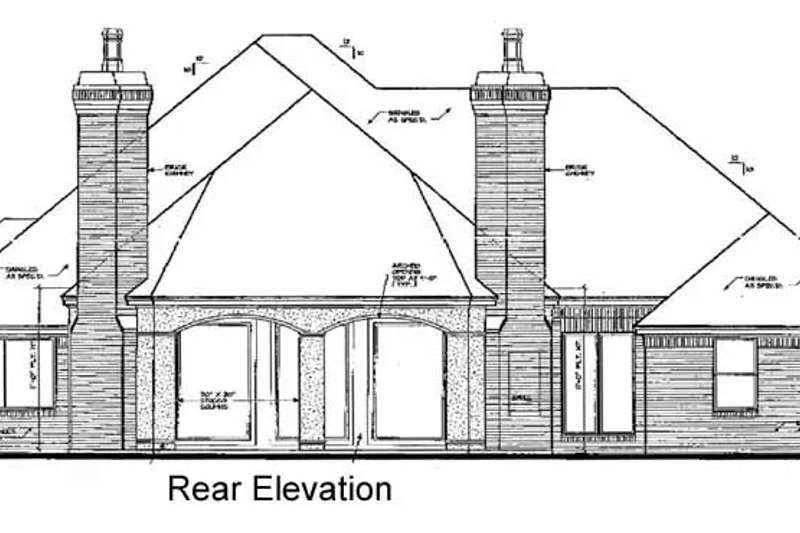

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
