Key Specs
2571
sq ft
4
Beds
2.5
Baths
2
Floors
3
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1010-132
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 47' 8"
Height : 32' 6"
Width : 71' 8"
Area
Basement Unfinished: 1310 sq/ft
Bonus: 311 sq/ft
First Floor: 1310 sq/ft height 9'
Garage: 816 sq/ft
Second Floor: 1261 sq/ft height 8'
Roof
Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
146 sq/ft width 12' 2" x depth 12'
Bedroom 3:
134 sq/ft width 12' 2" x depth 11'
Bedroom 4:
103 sq/ft width 10' x depth 11' 4"
Bonus:
311 sq/ft
Covered Front Porch:
180 sq/ft
Dining Room:
128 sq/ft width 16' x depth 8'
Garage:
816 sq/ft width 33' 4" x depth 23' 4"
Great Room:
323 sq/ft width 19' x depth 17'
Kitchen:
240 sq/ft width 16' x depth 15'
Master Closet:
71 sq/ft width 8' 10" x depth 8'
Master Bedroom:
245 sq/ft width 16' x depth 15' 4"
Study:
128 sq/ft width 12' 2" x depth 10' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

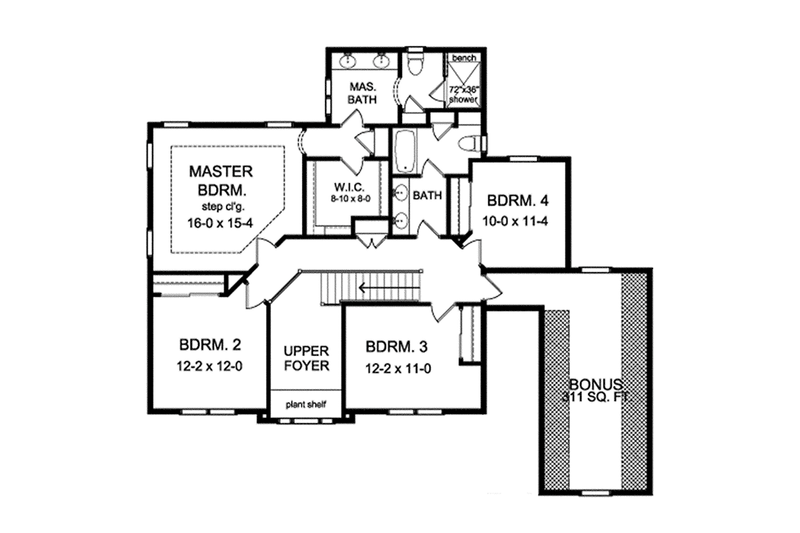

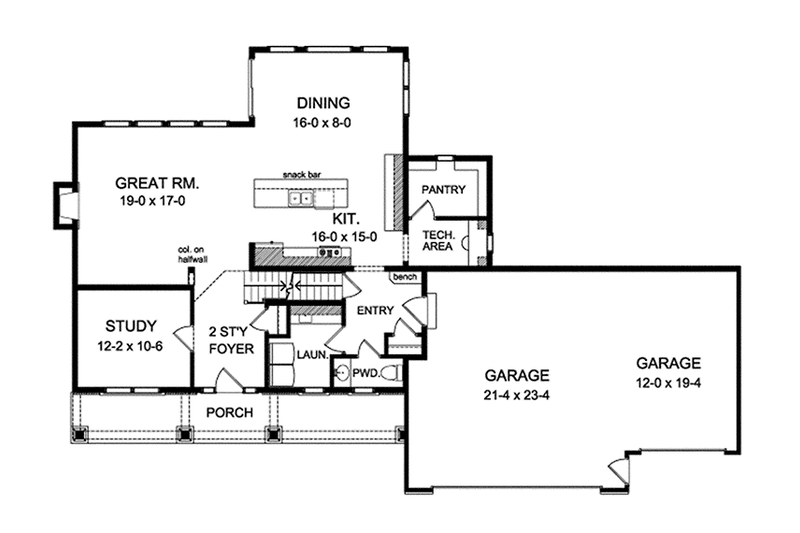

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
Plan Set
$1850.00
$1900.00
$3700.00
$1000.00
$1000.00
Foundation
$0.00
Framing
$0.00
Additional Options
$75.00
$165.00
$295.00
$39.00
$165.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
