PLAN 120-112
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

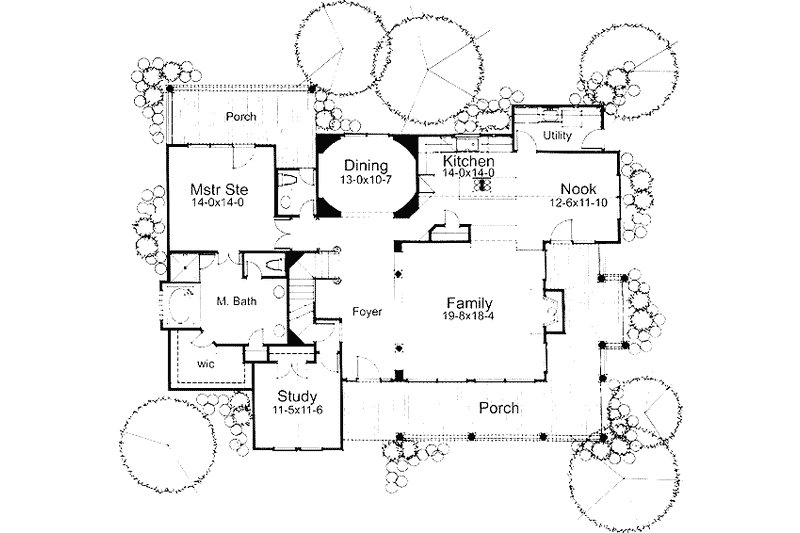

Floor Plan - Main Floor

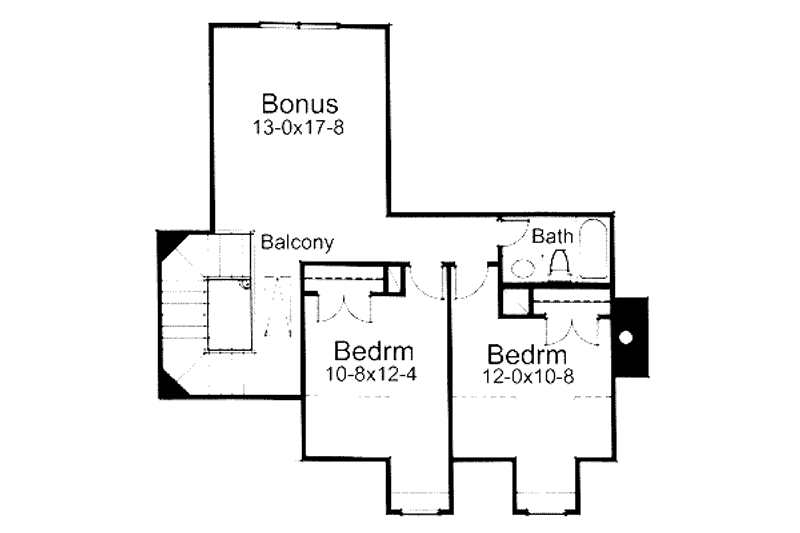

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 49' 2"
Height : 27'
Width : 62' 2"
Area
Bonus: 200 sq/ft
First Floor: 1948 sq/ft
Second Floor: 538 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Play Flex Room
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
3rd BR Closet:
11 sq/ft width 5' 9" x depth 2'
Basement Foundation:
3056 sq/ft width 62' 2" x depth 49' 2"
Bathroom 2:
40 sq/ft width 8' 1" x depth 5'
Bedroom 2:
131 sq/ft width 10' 8" x depth 12' 4"
Bedroom 2 Closet:
11 sq/ft width 5' 11" x depth 2'
Bedroom 3:
128 sq/ft width 12' x depth 10' 8"
Bedroom 3 Closet:
11 sq/ft width 5' 11" x depth 2'
Bonus Room - Finished:
229 sq/ft width 13' x depth 17' 8"
Breakfast Room:
147 sq/ft width 12' 6" x depth 11' 10"
Crawlspace Foundation:
3056 sq/ft width 62' 2" x depth 49' 2"
Dining Room:
137 sq/ft width 13' x depth 10' 7"
Foyer:
130 sq/ft width 7' x depth 18' 8"
Gathering Room:
360 sq/ft width 19' 8" x depth 18' 4"
Kitchen:
196 sq/ft width 14' x depth 14'
Master Bathroom:
189 sq/ft width 15' 6" x depth 12' 3"
Master Bedroom:
196 sq/ft width 14' x depth 14'
Master Closet:
84 sq/ft width 10' 10" x depth 7' 10"
Porch - Front:
432 sq/ft width 54' x depth 8'
Porch - Rear:
158 sq/ft width 19' 10" x depth 8'
Powder Room:
30 sq/ft width 5' 1" x depth 6'
Slab Foundation:
3056 sq/ft width 62' 2" x depth 49' 2"
Study:
131 sq/ft width 11' 5" x depth 11' 6"
Utility Room:
68 sq/ft width 11' 8" x depth 5' 10"
What's Included In This Plan Set
- Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
- Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
- Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
- Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.
- Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.
- Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
- Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
- Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
Plan Set
$1295.00
$1495.00
$1595.00
$1990.00
$2290.00
$2295.00
$2990.00
Foundation
$0.00
$195.00
$395.00
$495.00
Framing
$0.00
$345.00
Additional Options
$245.00
$60.00
$695.00
$165.00
$295.00
$39.00
$165.00
$695.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
