Plan Description

This coastal home plan gives a stately first impression; elegant dual staircases are just the beginning of this imposing coastal home plan. Designed for the intercoastal of Naples, Florida this floor plan has plenty of storage on the lower level that could easily be coverted into additional living space. There is even an elevator for your convenience! The second floor boasts of an elegant feel with triple coffer ceilings in the foyer and living room of this house plan. Each bedroom has its own bath, offering ultimate privacy for all. There is a half bath just to thr right of the entry for day visitors. As with most coastal home plans, this floor plan in centered on the view outside with the family room, dinette, kitchen, living room and master al having a front row seat. There is an ample size lanai on the second floor with outdoor kitchen for those nice, breezey evenings. If you have a coastal lot and are looking for a coastal plan, look no further than this mangificent option.

Full Specs & Features

Depth : 69'
Height : 39' 2"
Width : 61'
First Floor: 3303 sq/ft
Second Floor: 3351 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Clay Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Master Sitting Area

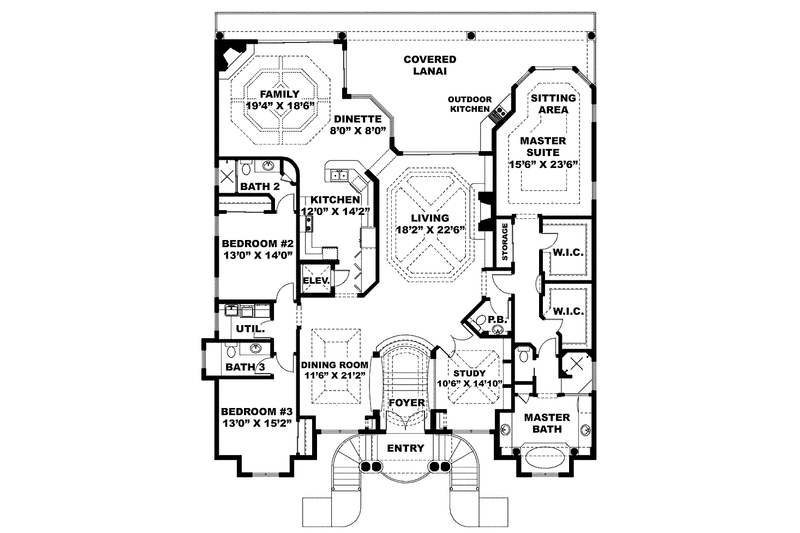

Bedroom 2:

182 sq/ft width 13' x depth 14'

Bedroom 3:

197 sq/ft width 13' x depth 15' 2"


64 sq/ft width 8' x depth 8'

Dining Room:

243 sq/ft width 11' 6" x depth 21' 2"

Family Room:

357 sq/ft width 19' 4" x depth 18' 6"


542 sq/ft width 14' 4" x depth 37' 10"

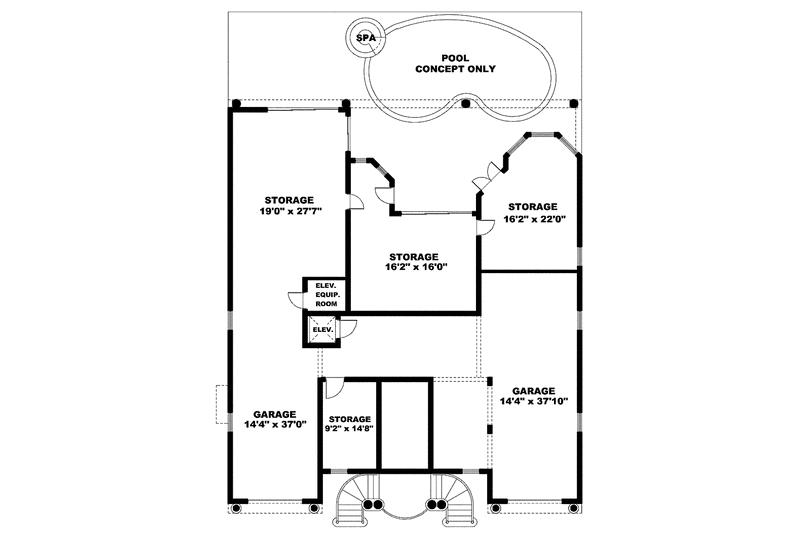

Garage Storage:

524 sq/ft width 19' x depth 27' 7"

Garage Two:

530 sq/ft width 14' 4" x depth 37'


170 sq/ft width 12' x depth 14' 2"

Living Room:

408 sq/ft width 18' 2" x depth 22' 6"

Master Suite:

364 sq/ft width 15' 6" x depth 23' 6"


134 sq/ft width 9' 2" x depth 14' 8"


355 sq/ft width 16' 2" x depth 22'


258 sq/ft width 16' 2" x depth 16'
