PLAN 413-910
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 65' 9"
Height : 33'
Width : 58' 8"
Height : 33'
Width : 58' 8"
Area
Bonus: 206 sq/ft

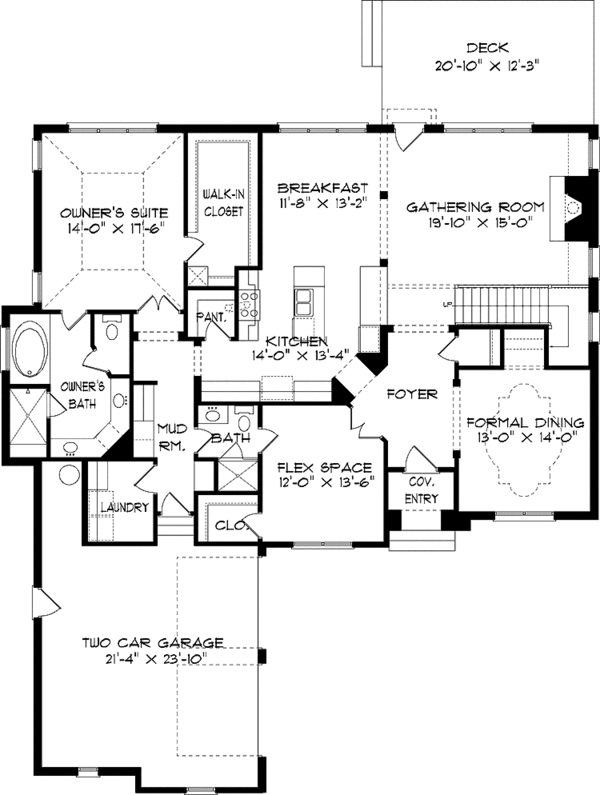

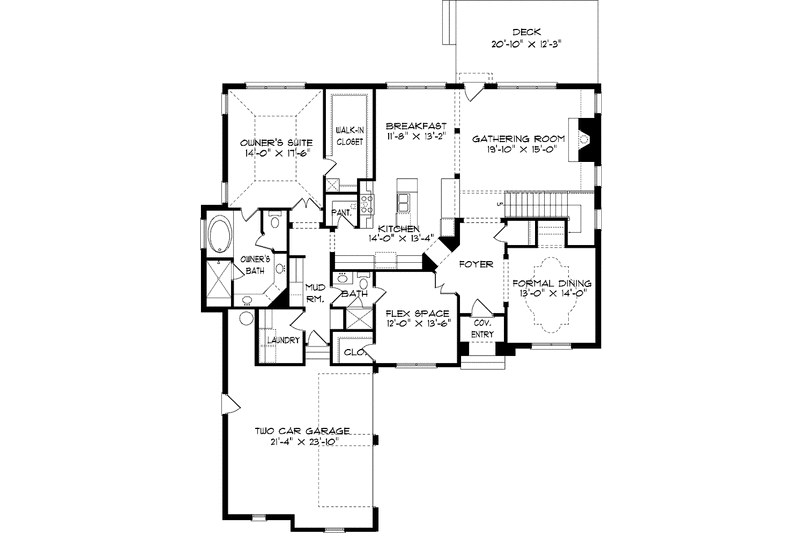

First Floor: 2166 sq/ft height 10'

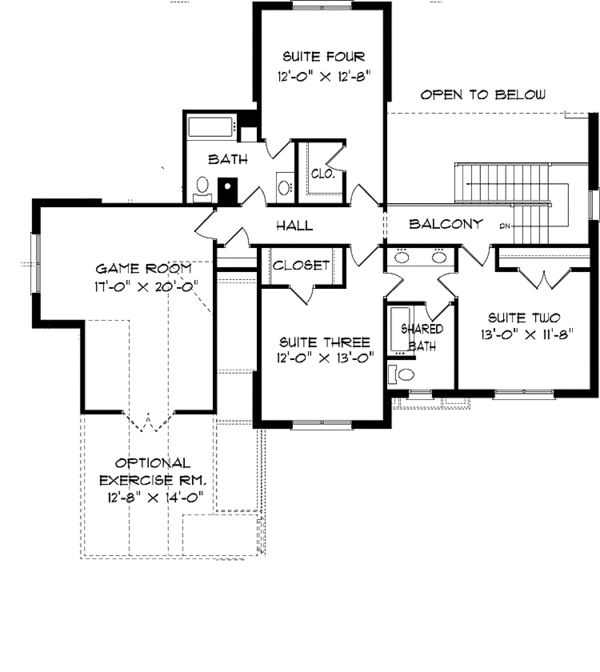

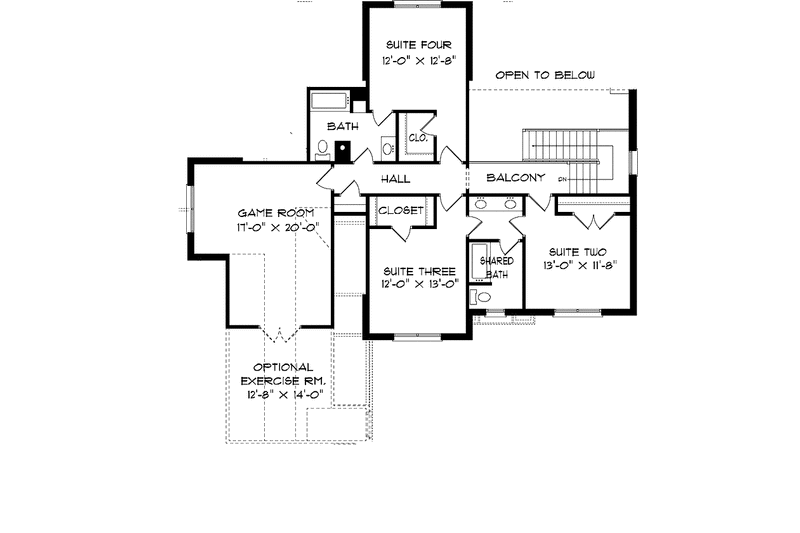

Second Floor: 1297 sq/ft height 9'
First Floor: 2166 sq/ft height 10'
Second Floor: 1297 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Secondary Pitch : 10:12
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6 Wood - 2x4
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Covered Front Porch
Deck
Rooms
Breakfast:
153 sq/ft width 11' 8" x depth 13' 2"
Deck:
255 sq/ft width 20' 10" x depth 12' 3"
Dining Room:
182 sq/ft width 13' x depth 14'
Flex Room:
162 sq/ft width 12' x depth 13' 6"
Game Room:
340 sq/ft width 17' x depth 20'
Garage:
508 sq/ft width 21' 4" x depth 23' 10"
Gathering Room:
297 sq/ft width 19' 10" x depth 15'
Guest Suite 2:
151 sq/ft width 13' x depth 11' 8"
Guest Suite 3:
156 sq/ft width 12' x depth 13'
Guest Suite 4:
152 sq/ft width 12' x depth 12' 8"
Kitchen:
186 sq/ft width 14' x depth 13' 4"
Master Suite:
245 sq/ft width 14' x depth 17' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

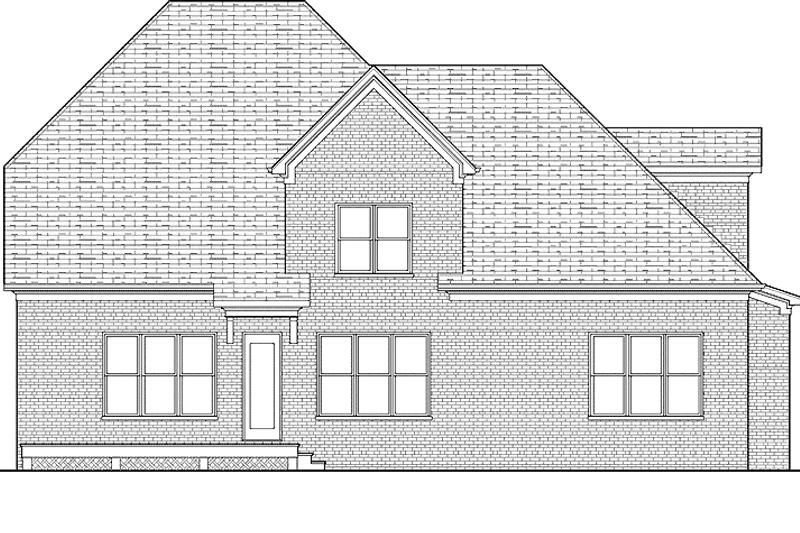

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1615.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $2040.00 |
5 printed plan sets mailed to you. |
| CAD Set : $2040.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $170.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $340.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Daylight Basement: $340.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $170.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $170.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
