PLAN 1054-12
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Floor Plans
Full Specs & Features
Dimension
Depth : 85'
Height : 37' 8"
Width : 81'
Area

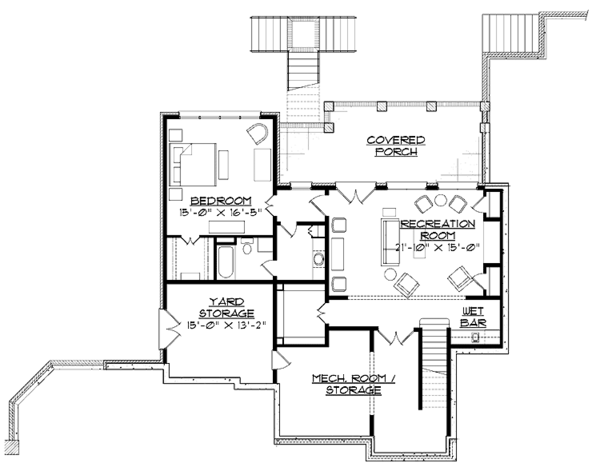

Basement Unfinished: 1515 sq/ft
Bonus: 461 sq/ft

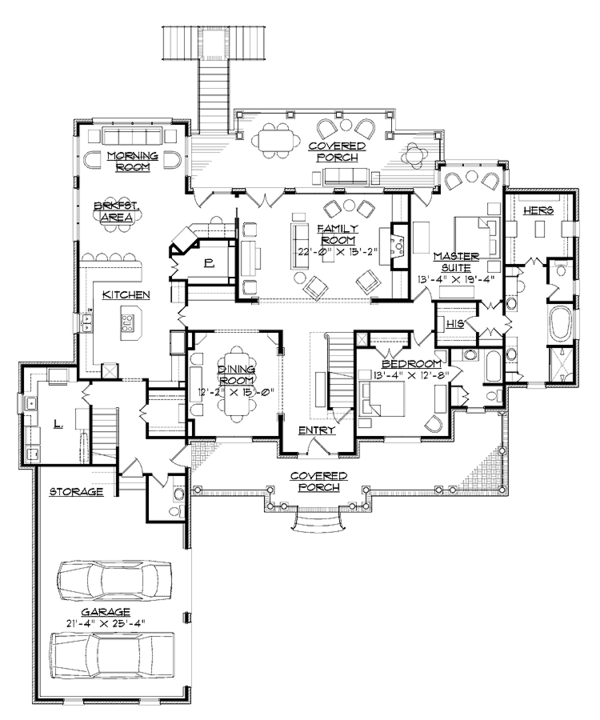

First Floor: 2915 sq/ft height 9'
Garage: 690 sq/ft
Porch: 779 sq/ft

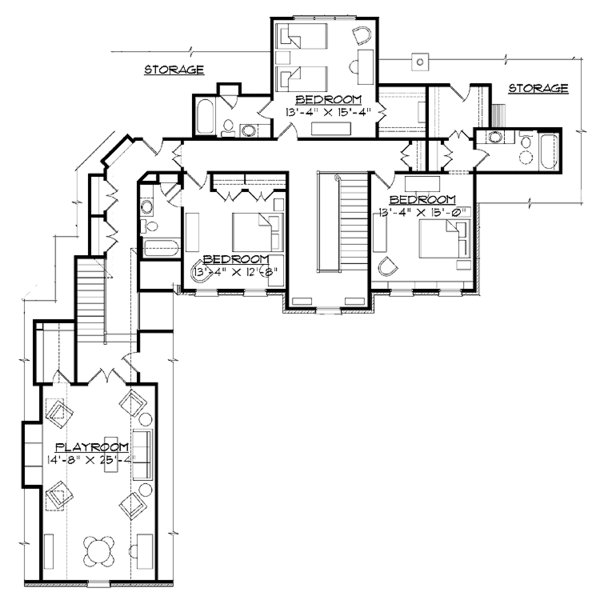

Second Floor: 1225 sq/ft height 9'
Storage: 223 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Storage Area
Sunroom
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Screened Porch
Rooms
Bathroom 2:
61 sq/ft width 8' 3" x depth 7' 6"
Bathroom 3:
50 sq/ft width 5' 3" x depth 9' 8"
Bathroom 4:
55 sq/ft width 5' 2" x depth 10' 8"
Bathroom 5:
55 sq/ft width 10' 8" x depth 5' 2"
Bathroom 6:
49 sq/ft width 7' 7" x depth 6' 7"
Bedroom 2:
168 sq/ft width 13' 4" x depth 12' 8"
Bedroom 2 Closet:
11 sq/ft width 5' 6" x depth 2'
Bedroom 3:
168 sq/ft width 13' 4" x depth 12' 8"
Bedroom 3 Closet:
17 sq/ft width 8' 7" x depth 2'
Bedroom 4:
199 sq/ft width 13' 4" x depth 15'
Bedroom 4 Closet:
40 sq/ft width 6' 6" x depth 6' 2"
Bedroom 5:
204 sq/ft width 13' 4" x depth 15' 4"
Bedroom 5 Closet:
50 sq/ft width 6' 7" x depth 7' 8"
Bedroom 6:
246 sq/ft width 15' x depth 16' 5"
Bedroom 6 Closet:
39 sq/ft width 6' x depth 6' 6"
Butler's Pantry:
41 sq/ft width 6' 7" x depth 6' 3"
Coat Closet:
28 sq/ft width 6' 6" x depth 4' 5"
Covered Porch:
206 sq/ft width 19' 8" x depth 10' 6"
Dining Room:
182 sq/ft width 12' 2" x depth 15'
Family Room:
333 sq/ft width 22' x depth 15' 2"
Foyer:
177 sq/ft width 10' 3" x depth 17' 4"
Garage:
540 sq/ft width 21' 4" x depth 25' 4"
Garage Storage:
92 sq/ft width 8' x depth 11' 6"
Kitchen:
278 sq/ft width 15' 3" x depth 18' 3"
Kitchen Island:
18 sq/ft width 6' 4" x depth 3'
Laundry Room:
133 sq/ft width 14' x depth 9' 6"
Master Bathroom:
159 sq/ft width 9' 8" x depth 16' 6"
Master Bedroom:
244 sq/ft width 13' 4" x depth 18' 4"
Master Closet - Hers:
87 sq/ft width 9' 2" x depth 9' 7"
Master Closet - His:
34 sq/ft width 5' 7" x depth 6' 3"
Master Sitting Area:
36 sq/ft width 9' x depth 4'
Morning Room:
146 sq/ft width 15' 3" x depth 9' 7"
Outside Storage Area:
205 sq/ft width 14' x depth 14' 8"
Pantry:
56 sq/ft width 6' 3" x depth 9'
Planning Center:
50 sq/ft width 6' 3" x depth 8'
Play Room:
371 sq/ft width 14' 8" x depth 25' 4"
Porch - Front:
434 sq/ft width 36' 6" x depth 11' 11"
Powder Room:
33 sq/ft width 6' 5" x depth 5' 3"
Recreation Room:
327 sq/ft width 21' 10" x depth 15'
Walk-In Closet:
34 sq/ft width 6' 6" x depth 5' 3"
Wet Bar:
43 sq/ft width 6' 2" x depth 7'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1107.00
$1197.00
$1197.00
$2034.00
$927.00
Foundation
$0.00
Framing
$0.00
Additional Options
$157.50
$22.50
$90.00
$35.10
$180.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
