PLAN 1054-18

Photographs may show modified designs.

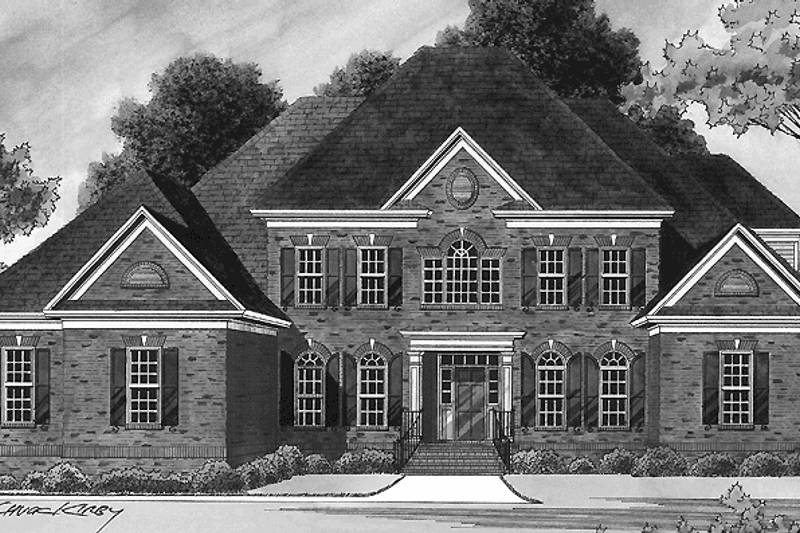

Home Plan - Colonial Exterior - Front Elevation Plan #1054-18

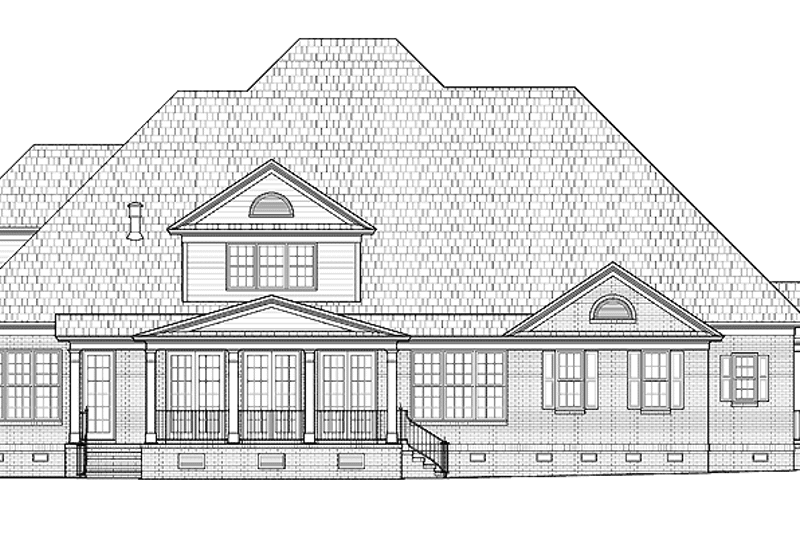

Home Plan - Colonial Exterior - Rear Elevation Plan #1054-18

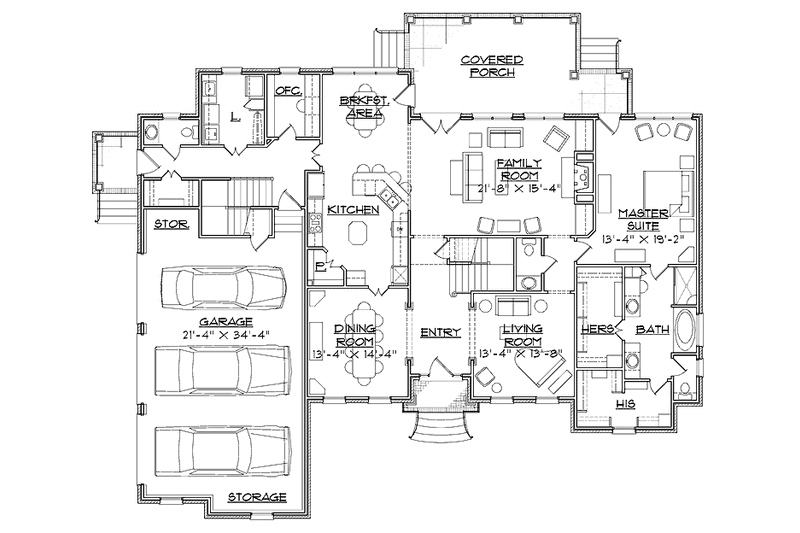

Home Plan - Colonial Floor Plan - Main Floor Plan #1054-18

Home Plan - Colonial Floor Plan - Upper Floor Plan #1054-18

Jump to:
All (5)
Exterior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Colonial

Key Specs

3811
sq ft

5
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$25.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$25.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1060.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1054-18

Home > Style > Colonial

Key Specs

3811
sq ft

5
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This colonial design floor plan is 3811 sq ft and has 5 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 66' 10"

Height : 39' 4"

Width : 80' 8"

Area

Bonus: 541 sq/ft

First Floor: 2410 sq/ft

Garage: 865 sq/ft

Porch: 389 sq/ft

Second Floor: 1401 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Open Floor Plan

Storage Area

Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bathroom 3:

79 sq/ft width 8' 8" x depth 9' 2"

Bathroom 5:

126 sq/ft width 16' 6" x depth 7' 8"

Bedroom 2:

186 sq/ft width 13' 4" x depth 14'

Bedroom 2 Closet:

25 sq/ft width 7' 2" x depth 3' 6"

Bedroom 3:

182 sq/ft width 13' 4" x depth 13' 8"

Bedroom 3 Closet:

25 sq/ft width 7' x depth 3' 8"

Bedroom 4:

179 sq/ft width 15' 10" x depth 11' 4"

Bedroom 4 Closet:

34 sq/ft width 6' 6" x depth 5' 4"

Bedroom 5:

176 sq/ft width 15' 4" x depth 11' 6"

Bedroom 5 Closet:

37 sq/ft width 5' 4" x depth 7'

Bonus Room - Unfinished:

371 sq/ft width 14' x depth 26' 6"

Dining Room:

191 sq/ft width 13' 4" x depth 14' 4"

Family Room:

332 sq/ft width 21' 8" x depth 15' 4"

Foyer:

114 sq/ft width 8' x depth 14' 4"

Garage:

732 sq/ft width 21' 4" x depth 34' 4"

Garage Storage:

28 sq/ft width 7' 4" x depth 3' 10"

Home Office:

57 sq/ft width 8' 3" x depth 7'

Kitchen:

209 sq/ft width 11' 4" x depth 18' 6"

Kitchen Island:

6 sq/ft width 2' 4" x depth 3'

Laundry Room:

77 sq/ft width 8' 4" x depth 9' 4"

Living Room:

182 sq/ft width 13' 4" x depth 13' 8"

Master Bathroom:

139 sq/ft width 9' 6" x depth 14' 8"

Master Bedroom:

255 sq/ft width 13' 4" x depth 19' 2"

Master Closet:

79 sq/ft width 13' 2" x depth 6'

Master Closet Two:

97 sq/ft width 13' x depth 7' 6"

Pantry:

23 sq/ft width 4' 10" x depth 4' 10"

Porch:

397 sq/ft width 30' 2" x depth 13' 2"

Porch - Front:

47 sq/ft width 10' x depth 4' 9"

Powder Room:

23 sq/ft width 3' 4" x depth 7'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1060.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

8 Copy Set:
$1260.00

8 printed plan sets mailed to you.

Reproducible Set:
$1260.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2120.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$960.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$25.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$25.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
