PLAN 1017-109

Key Specs

4623
sq ft

4
Beds

5.5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This 3-story beach home is a magnificently designed Mediterranean style home. It is perfect for the beach with an open to below garage floor that accommodates 4 cars and still has plenty of storage space! It also boasts of lanai space on both living floors accessible from the main living spaces and the upstairs privated bedrooms. There is even an outdoor kitchen for family style barbeques during the warm summer months. This plan has lots of living space along with plenty of private space to accommodate all types of living!

Floor Plans

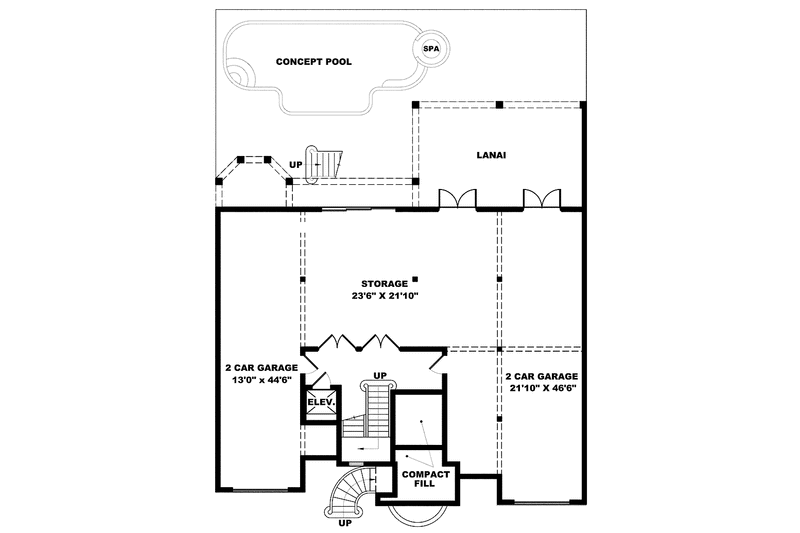

Floor Plan - Lower Floor Plan

Reverse

Mediterranean Floor Plan - Lower Floor Plan Plan #1017-109

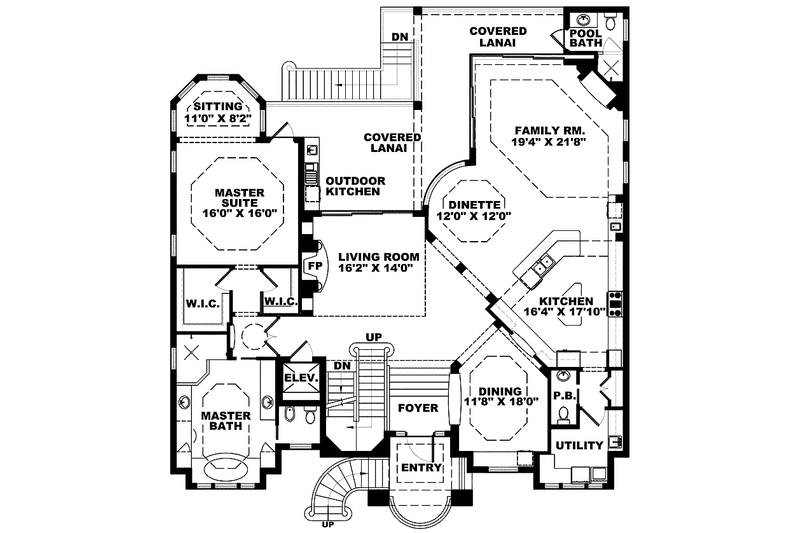

Floor Plan - Main Floor Plan

Reverse

Mediterranean Floor Plan - Main Floor Plan Plan #1017-109

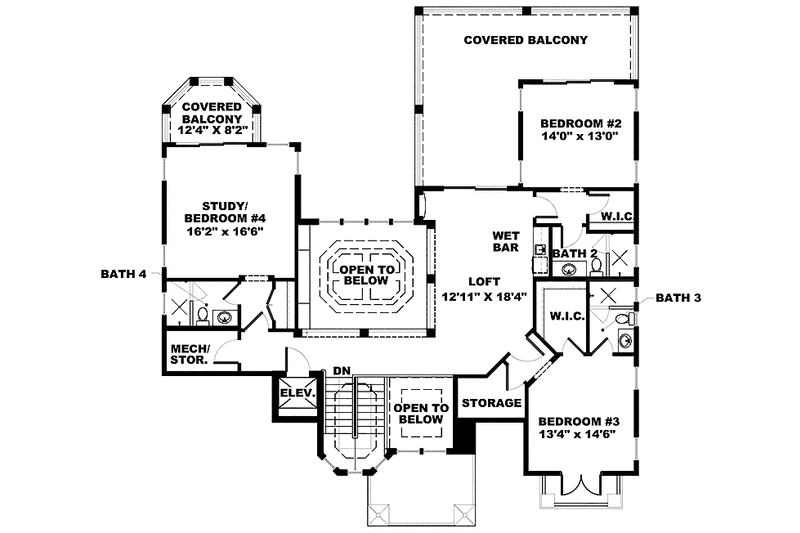

Floor Plan - Upper Floor Plan

Reverse

Mediterranean Floor Plan - Upper Floor Plan Plan #1017-109

Full Specs & Features

Dimension

Depth : 65'
Height : 43' 6"
Width : 59' 8"

Area

Basement Living: 315 sq/ft
First Floor: 2760 sq/ft
Garage: 2328 sq/ft
Second Floor: 1548 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Master Sitting Area

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch

Wheelchair Adaptable

Rooms

Bedroom 2:

182 sq/ft width 14' x depth 13'

Bedroom 3:

193 sq/ft width 13' 4" x depth 14' 6"

Bedroom 4:

266 sq/ft width 16' 2" x depth 16' 6"

Dinette:

144 sq/ft width 12' x depth 12'

Dining Room:

210 sq/ft width 11' 8" x depth 18'

Family Room:

418 sq/ft width 19' 4" x depth 21' 8"

Garage:

1015 sq/ft width 21' 10" x depth 46' 6"

Garage Two:

578 sq/ft width 13' x depth 44' 6"

Kitchen:

291 sq/ft width 16' 4" x depth 17' 10"

Living Room:

226 sq/ft width 16' 2" x depth 14'

Loft:

236 sq/ft width 12' 11" x depth 18' 4"

Master Sitting Area:

89 sq/ft width 11' x depth 8' 2"

Master Suite:

256 sq/ft width 16' x depth 16'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $2480.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $2480.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $2480.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Pier:
$0.00

Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Framing

Block:
$0.00

Block

Additional Options

Additional Construction Sets : $72.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $80.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $31.20	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $15.20	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $160.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $60.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
