Full Specs & Features
Depth : 63'
Height : 34' 4"
Width : 85'

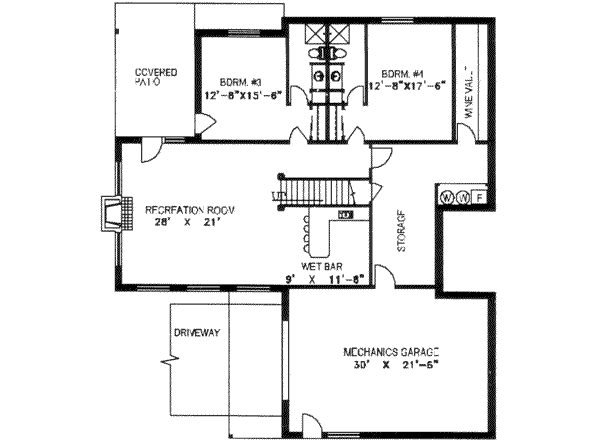

Basement Living: 1997 sq/ft

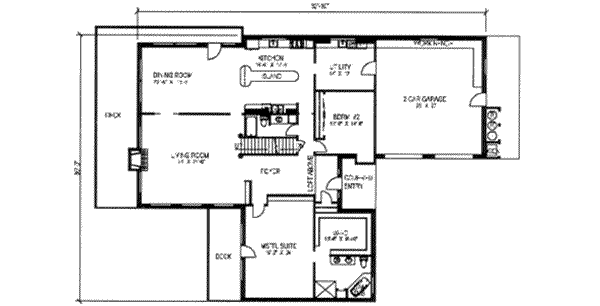

First Floor: 2913 sq/ft
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : ICF
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Hobby Rec Room Game Room
Unfinished Future Space
Suited For Vacation Home
252 sq/ft width 16' 8" x depth 15' 2"
382 sq/ft width 24' 8" x depth 15' 6"
616 sq/ft width 24' 8" x depth 25'
388 sq/ft width 16' 2" x depth 24'
168 sq/ft width 14' x depth 12'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
