PLAN 119-181

Key Specs

6095
sq ft

5
Beds

5.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

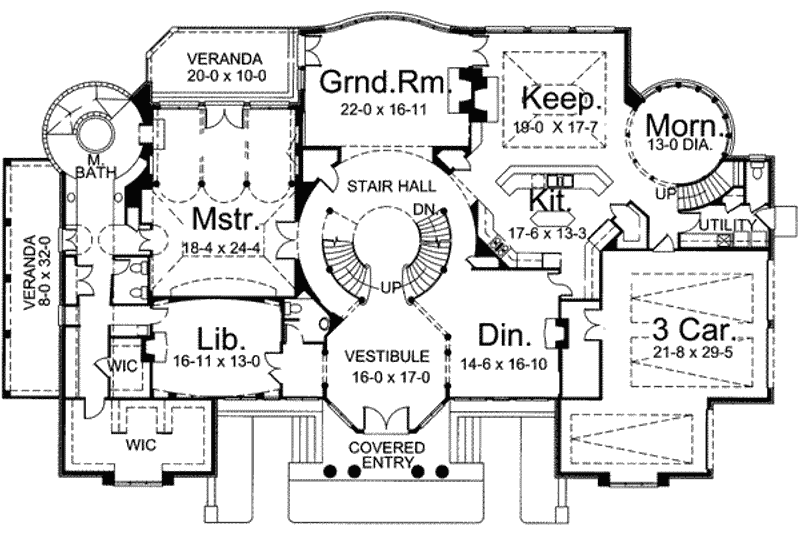

Floor Plan - Main Floor Plan

Reverse

Classical Floor Plan - Main Floor Plan Plan #119-181

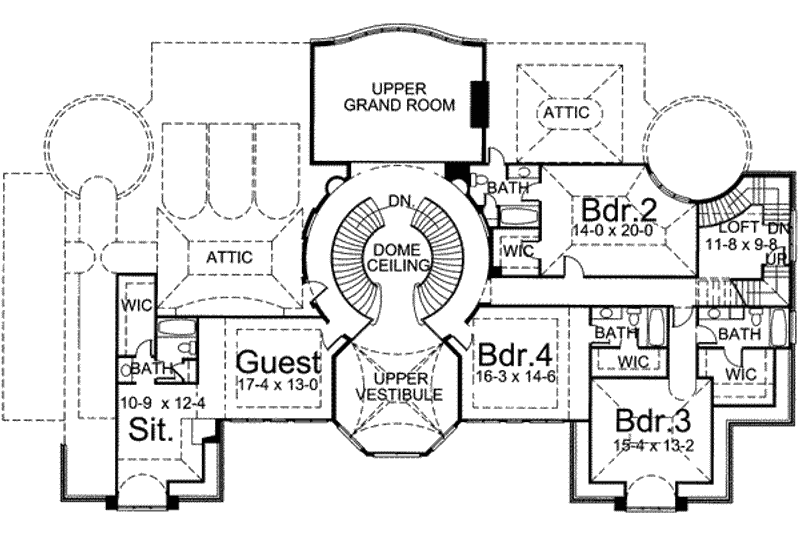

Floor Plan - Upper Floor Plan

Reverse

Classical Floor Plan - Upper Floor Plan Plan #119-181

Full Specs & Features

Dimension

Depth : 62' 5"
Height : 40'
Width : 102' 1"

Area

Basement Unfinished: 3400 sq/ft
First Floor: 3911 sq/ft height 10'
Second Floor: 2184 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Master Sitting Area
Storage Area
Sunroom

Garage Features

Oversized Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Screened Porch

Rooms

Basement Foundation:

6380 sq/ft width 102' 1" x depth 62' 6"

Bedroom 2:

280 sq/ft width 14' x depth 20'

Bedroom 3:

201 sq/ft width 15' 4" x depth 13' 2"

Bedroom 4:

235 sq/ft width 16' 3" x depth 14' 6"

Den/Office or Bedroom 1:

219 sq/ft width 16' 11" x depth 13'

Dining Room:

244 sq/ft width 14' 6" x depth 16' 10"

Game Room:

456 sq/ft width 18' 9" x depth 24' 4"

Her closet:

width 19' x depth 10'

His closet:

width 5' x depth 8'

Kitchen:

314 sq/ft width 19' 8" x depth 16'

Laundry Room:

65 sq/ft width 11' 8" x depth 5' 7"

Library:

width 17' x depth 13'

Master Bedroom:

460 sq/ft width 18' 11" x depth 24' 4"

Study:

241 sq/ft width 18' 7" x depth 13'

Vestibule:

width 16' x depth 17'

What's Included In This Plan Set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.

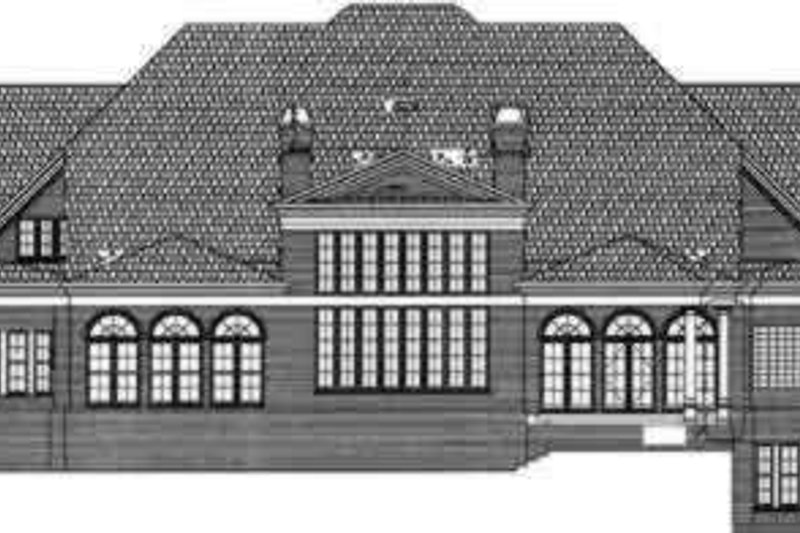

Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
