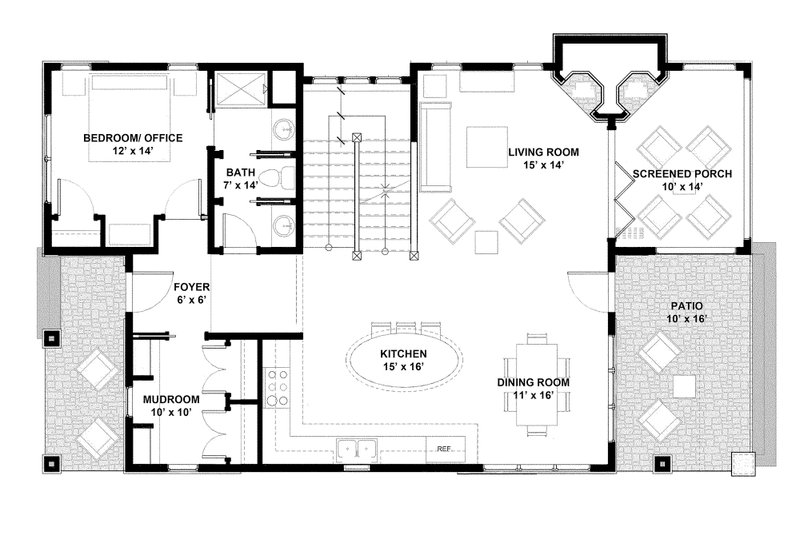

Designed for tight lots, this 3 bedroom 3 bath (the Tricklebrook from Visbeen Architects) packs a world of amenities into a compact Craftsman bungalow-inspired design. It includes a flexible office/bedroom with full bath (with an extra vanity so it functions as the powder room even when the office is occupied) on one side of the foyer and a mud room/laundry on the other. The open living/dining/kitchen connects to a rear patio and screened porch. Both the living room and screened porch have fireplaces. The master suite and another bedroom suite are upstairs along with a convenient office/reading space that would also work as a nursery.
Full Specs & Features
Height : 28'
Width : 30'
Second Floor: 1025 sq/ft height 8'
Upper Ceiling Ft : 8'
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 9:12
Framing : Wood - 2x6
Upstairs Master Bedrooms
Walk In Closet
Master Sitting Area
Mud Room
Sunroom
Upstairs Laundry
Screened Porch
Bath 1:
98 sq/ft width 7' x depth 14'
Bath 2:
63 sq/ft width 7' x depth 9'
Bedroom 2/ Office:
168 sq/ft width 12' x depth 14'
Bedroom 3:
204 sq/ft width 17' x depth 12'
Bedroom 3 Closet:
42 sq/ft width 7' x depth 6'
Covered Front Porch:
96 sq/ft
Dining Area:
176 sq/ft width 11' x depth 16'
Foyer:
36 sq/ft width 6' x depth 6'
Kitchen:
240 sq/ft width 15' x depth 16'
Laundry Room:
72 sq/ft width 8' x depth 9'
Living Room:
210 sq/ft width 15' x depth 14'
Master Bath:
100 sq/ft width 10' x depth 10'
Master Bedroom:
182 sq/ft width 13' x depth 14'
Master Closet:
72 sq/ft width 8' x depth 9'
Mud Room:
100 sq/ft width 10' x depth 10'
Office/ Reading Room:
128 sq/ft width 8' x depth 16'
Rear Patio:
160 sq/ft width 10' x depth 16'
Screened Rear Porch:
150 sq/ft width 10' x depth 14'
