PLAN 1017-167

Key Specs

2438
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A large courtyard in front and a lanai in back make this home perfect for indoor-outdoor living. The master suite invites you to relax in the enormous shower (boasting double showerheads), with two sinks and walk-in closets nearby. Every bedroom features a private bathroom. In the middle of the home, three sets of French doors open the gathering spaces to the lanai. The kitchen's large island provides quite a bit of counter space for meal prep and hanging out. A loft upstairs can be used as a homework space or playroom. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Floor Plans

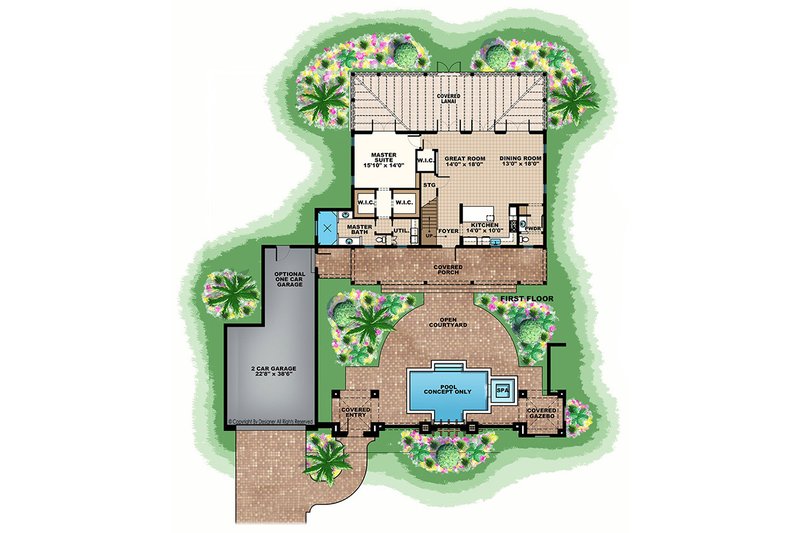

Floor Plan - Main Floor Plan

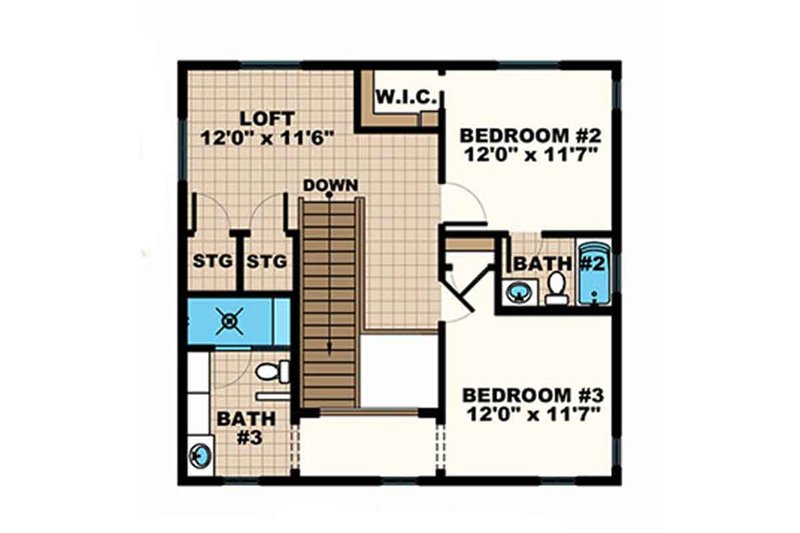

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 92'
Height : 29' 7"
Width : 87' 8"

Area

First Floor: 1595 sq/ft
Garage: 945 sq/ft
Second Floor: 843 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Tile
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area

Garage Features

Front Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch

Rooms

Covered Front Porch:

144 sq/ft

Covered Rear Lanai:

750 sq/ft

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $1200.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $1200.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1200.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Additional Options

Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
