Full Specs & Features
Depth : 75'
Height : 29' 2"
Width : 40'
First Floor: 1904 sq/ft
Second Floor: 718 sq/ft
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Formal Dining Room
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
145 sq/ft width 11' 2" x depth 13'
161 sq/ft width 13' 10" x depth 11' 8"
143 sq/ft width 11' x depth 13'
420 sq/ft width 20' x depth 21'
376 sq/ft width 18' 8" x depth 20' 2"
163 sq/ft width 10' 8" x depth 15' 4"
296 sq/ft width 24' 8" x depth 12'
132 sq/ft width 11' x depth 12'
270 sq/ft width 15' x depth 18'
179 sq/ft width 11' x depth 16' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

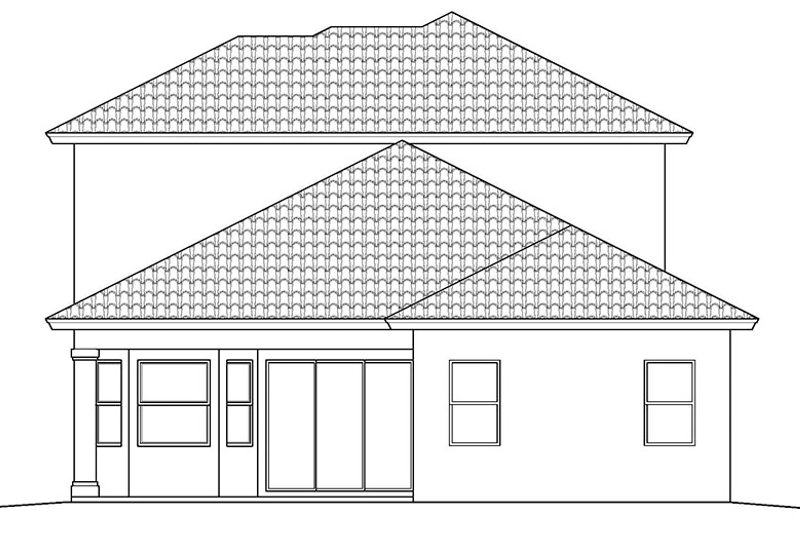

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

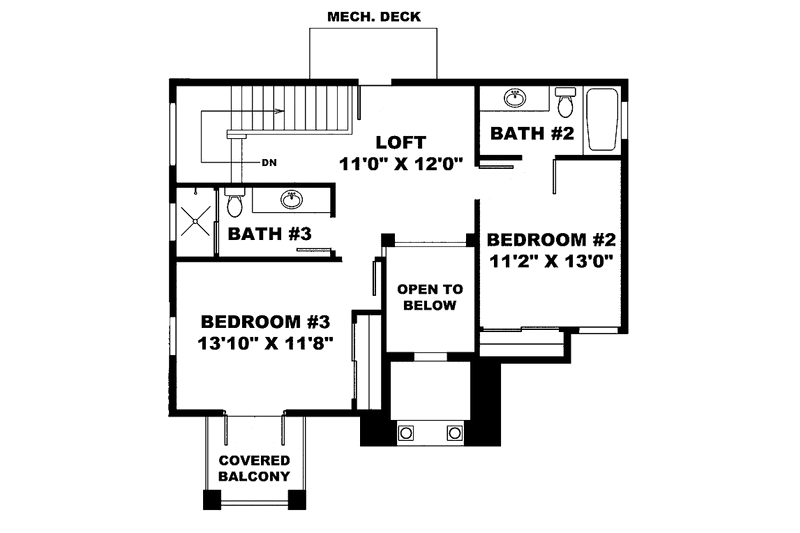

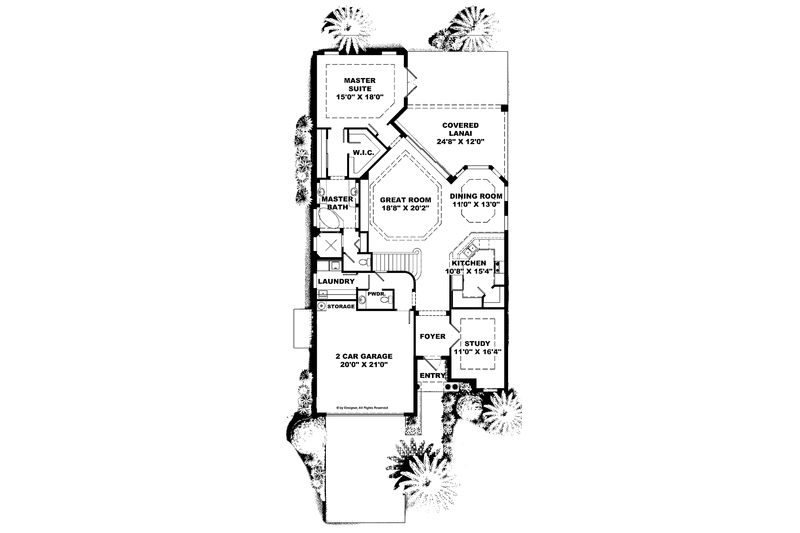

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
