PLAN 1017-140

Key Specs

2746
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This plan is perfect for a narrow corner lot. Only 62 feet wide, this house design features many interesting angles and lots of ceiling designs adding to the character of this floor plan. An octagonal dining room is just to the left as you enter and the study is to the right. Then you walk into a very spacious great room that immediately overlooks the covered lanai and pool area. The dinette of this floor plan has a radial glass window allowing for maximum light and views from the kitchen. A great corner lot home plan!

Floor Plans

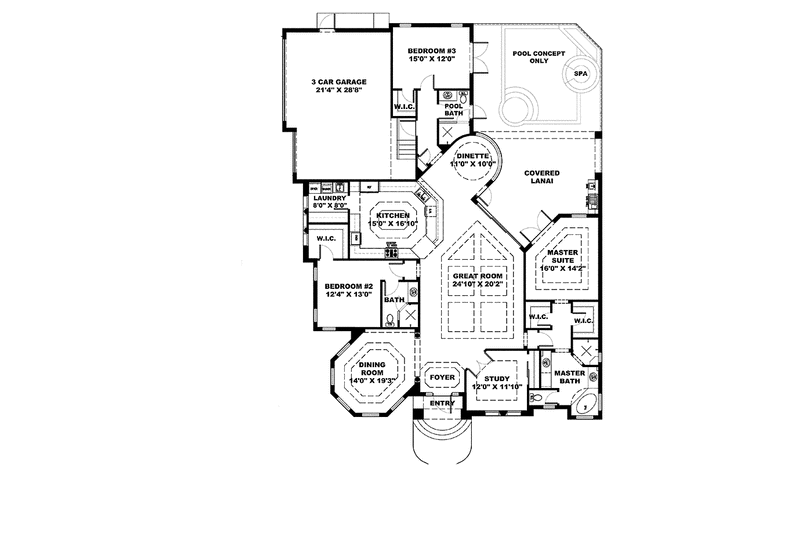

Floor Plan - Main Floor Plan

Reverse

Mediterranean Floor Plan - Main Floor Plan Plan #1017-140

Full Specs & Features

Dimension

Depth : 76' 10"
Height : 26'
Width : 62'

Area

First Floor: 2746 sq/ft
Garage: 656 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Block

Bedroom Features

Formal Dining Room
Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Dinette:

94 sq/ft width 10' 6" x depth 9'

Dining Room:

135 sq/ft width 11' 4" x depth 12'

Garage:

579 sq/ft width 22' x depth 26' 4"

Great Room:

386 sq/ft width 19' 2" x depth 20' 2"

Kitchen:

207 sq/ft width 14' 10" x depth 14'

Master Suite:

294 sq/ft width 14' x depth 21'

Study:

219 sq/ft width 15' 8" x depth 14'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Plan Set

CAD Set : $1100.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set : $1100.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1100.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Block:
$0.00

Block

Additional Options

Additional Construction Sets : $90.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $75.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
