PLAN 1084-11

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description


"Barndominium" Style home with large open loft area and plenty of covered porch. 2x framed living space inside Pre-Engineered steel frame structure.

Full Specs & Features


Dimension

Depth : 52'

Height : 18'

Width : 82'

Area

Garage : 1440 sq/ft

Main Floor : 2184 sq/ft

Porch : 1334 sq/ft

Upper Floor : 1156 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 18'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Roof Framing : Pre-engineered steel frame per manufacturer

Roof Load : Per Local Code requirements

Roof Type : Pre-engineered steel frame per manufacturer

Exterior Wall Framing

Exterior Wall Finish : Per Owner/Builder

Framing : Pre-engineered Steel Frame per manufacturer w/2x framing inside

Insulation : Per Owner/Builder

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Storage Area

Garage Features

Carport Porte Cochere

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Wrap Around Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

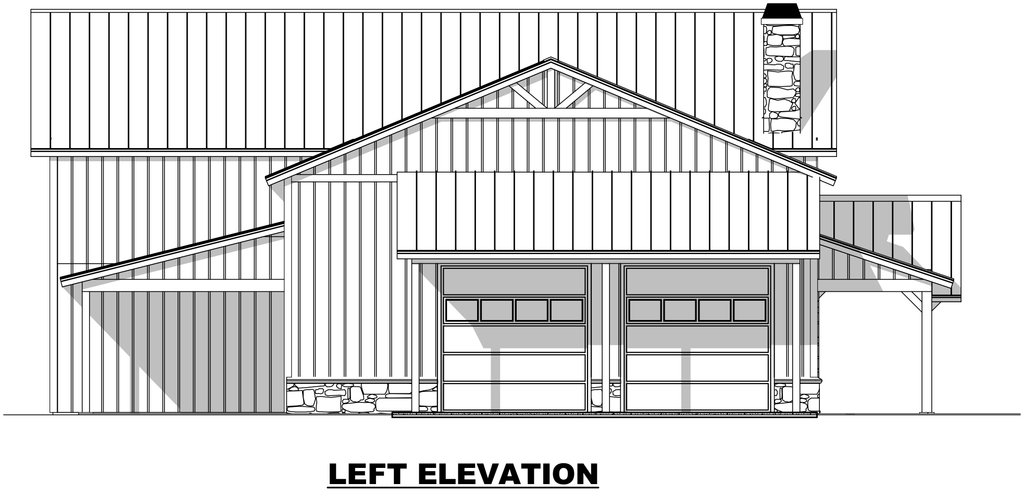

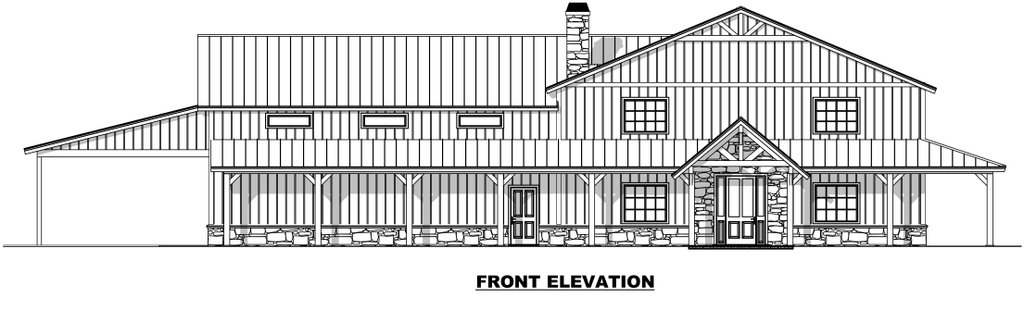

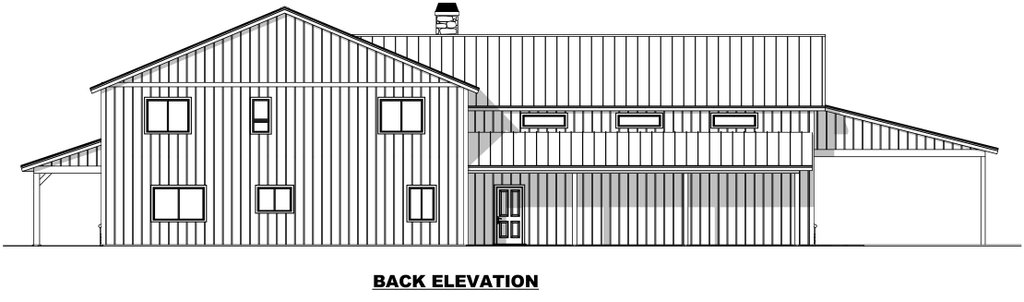

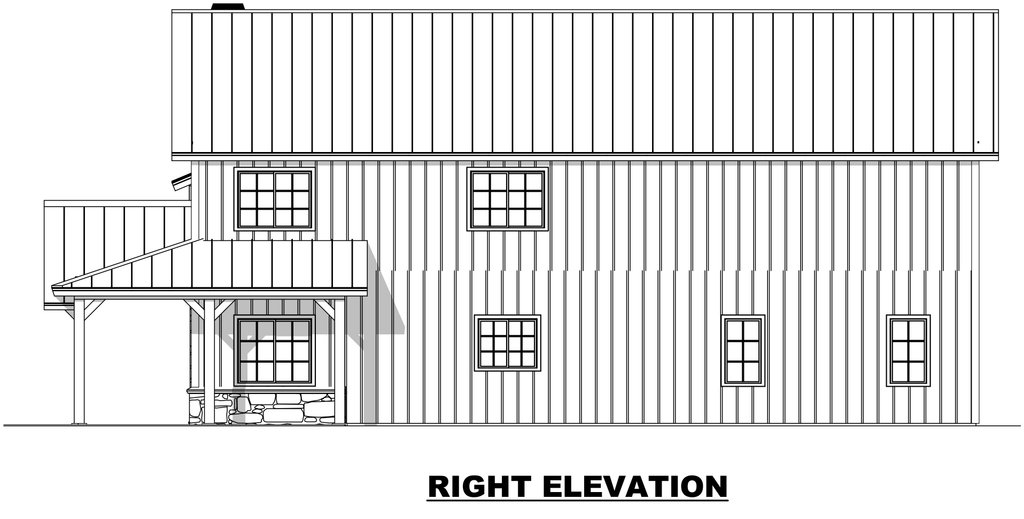

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

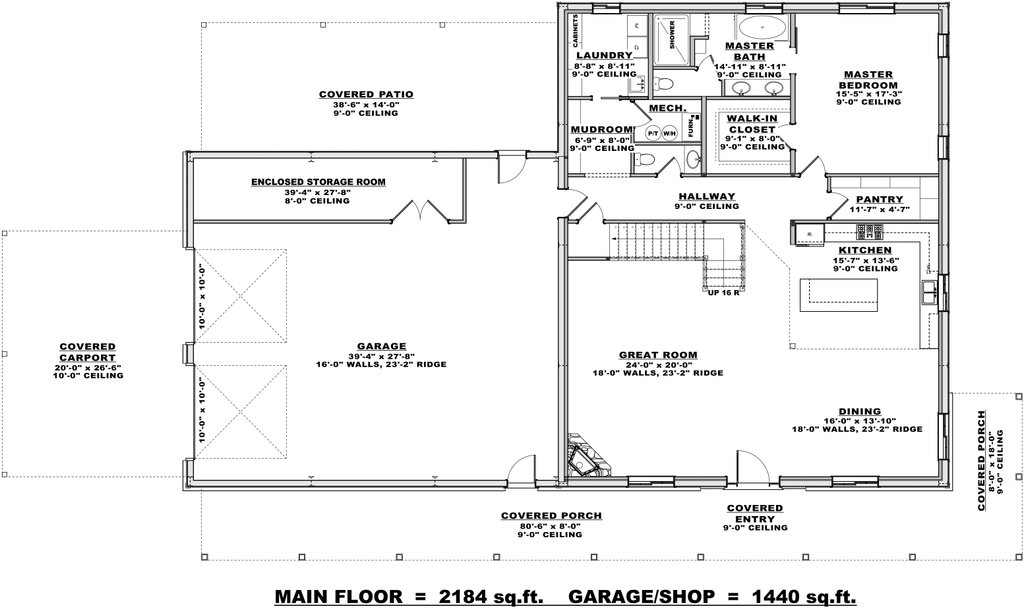

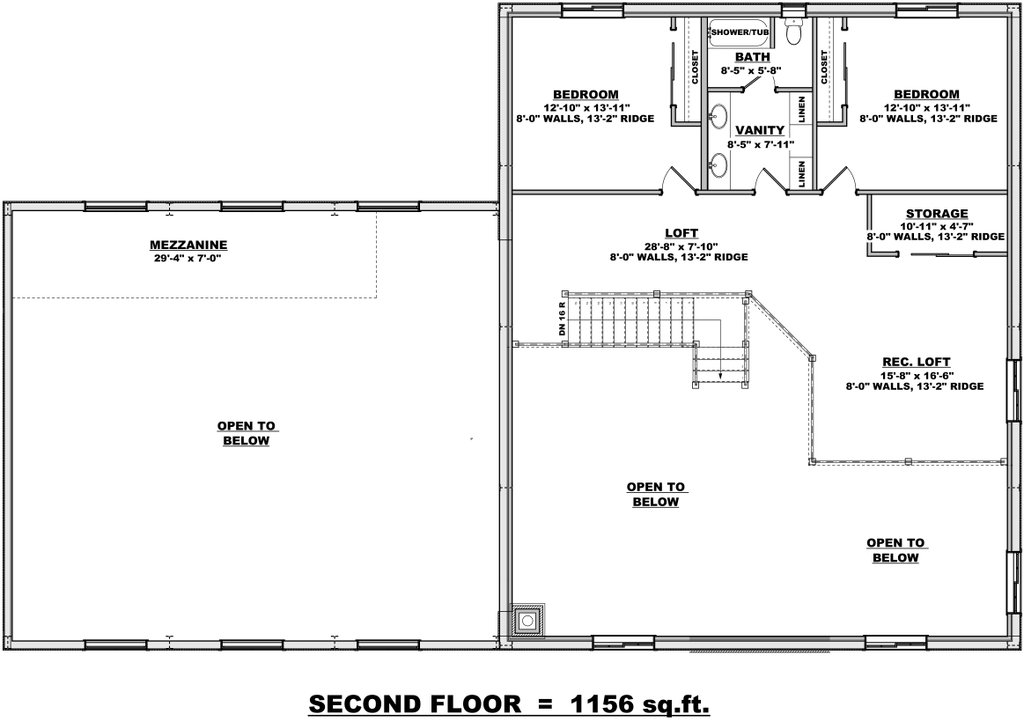

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$1349.00
5 printed plan sets mailed to you.
PDF Set:
$1349.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1649.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
