PLAN 1017-110

Home > Style > Mediterranean

Key Specs

4735
sq ft

4
Beds

5.5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This 3-story beach home is a magnificently designed Mediterranean style home. It is perfect for the beach with an open to below garage floor that accommodates 4 cars and still has plenty of storage space! It also boasts of lanai space on both living floors accessible from the main living spaces and the upstairs privated bedrooms. There is even an outdoor kitchen for family style barbeques during the warm summer months. This plan has lots of living space along with plenty of private space to accommodate all types of living!

Floor Plans

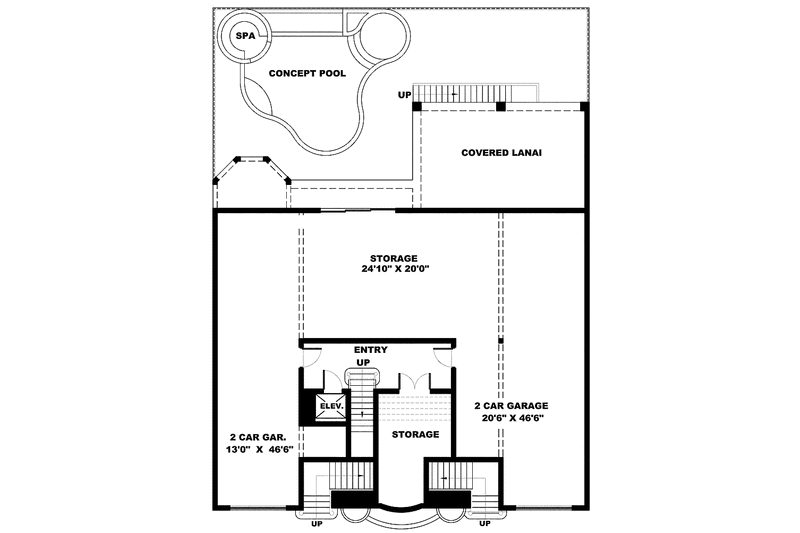

Floor Plan - Lower Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

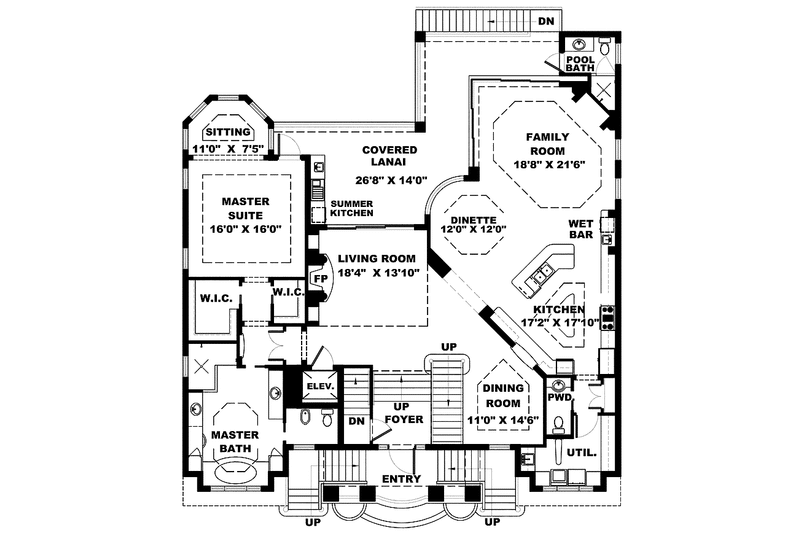

Floor Plan - Main Floor

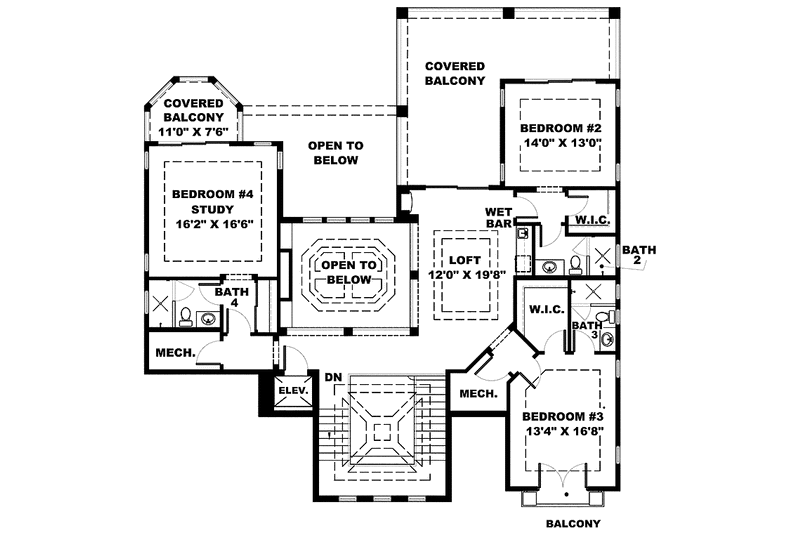

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth: 65'

Height: 45' 3"

Width: 59' 8"

Area

Basement Living: 308 sq/ft

First Floor: 2734 sq/ft

Garage: 2411 sq/ft

Second Floor: 1693 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch: 6:12

Roof Framing: Truss

Roof Type: Clay Tile

Exterior Wall Framing

Exterior Wall Finish: Stucco

Framing: Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Loft

Master Sitting Area

Outdoor Spaces

Balcony

Wheelchair Adaptable

Rooms

Bedroom 2:

182 sq/ft width 14' x depth 13'

Bedroom 3:

222 sq/ft width 13' 4" x depth 16' 8"

Bedroom 4:

266 sq/ft width 16' 2" x depth 16' 6"

Dinette:

144 sq/ft width 12' x depth 12'

Dining Room:

159 sq/ft width 11' x depth 14' 6"

Family Room:

401 sq/ft width 18' 8" x depth 21' 6"

Garage:

953 sq/ft width 20' 6" x depth 46' 6"

Garage Two:

604 sq/ft width 13' x depth 46' 6"

Kitchen:

306 sq/ft width 17' 2" x depth 17' 10"

Lanai:

373 sq/ft width 26' 8" x depth 14'

Living Room:

253 sq/ft width 18' 4" x depth 13' 10"

Loft:

236 sq/ft width 12' x depth 19' 8"

Master Sitting Area:

81 sq/ft width 11' x depth 7' 5"

Master Suite:

256 sq/ft width 16' x depth 16'

Storage:

496 sq/ft width 24' 10" x depth 20'

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.

Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

Questions? Call 1-888-447-1946

Plan Set

CAD Set:
$3100.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$3100.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Pier:
$0.00

Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Additional Options

Additional Construction Sets:
$90.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
