PLAN 1017-39

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

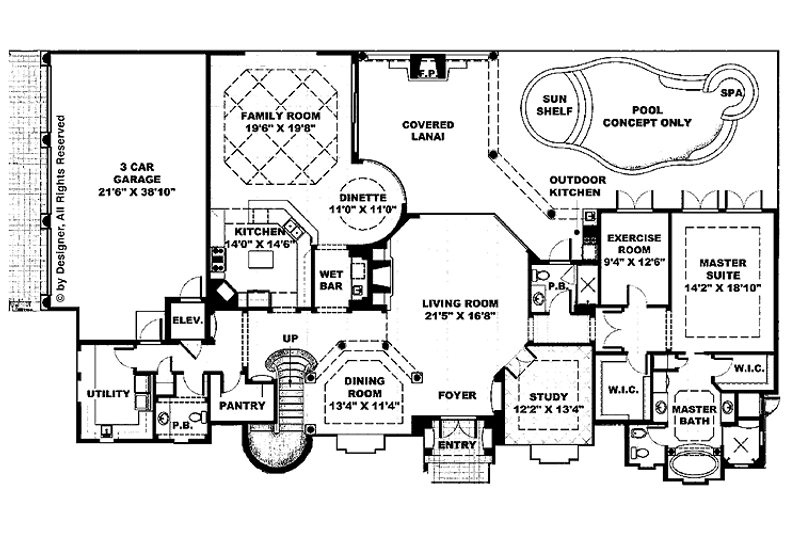

Live a pampered life in this Mediterranean villa. Towers and varying rooflines add intrigue to the already attractive facade. Inside, amenities abound. The living room is the home's center, with pocket glass doors to a covered lanai and outdoor fireplace. Not far is the coffered family room with an adjacent kitchen and a breakfast bar. The master suite has its own wing, with a private bath, exercise room, and lanai access. A turret staircase leads to three bedrooms and a theater. The elevator is a bonus. NOTE: 1st floor has Wood 2 X 6 framing, 2nd floor has Wood 2 X 4 framing.

Full Specs & Features


Depth : 58' 4"

Height : 31' 10"

Width : 101' 6"


First Floor: 3230 sq/ft

Garage: 840 sq/ft

Second Floor: 1568 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room


Open Floor Plan

Unfinished Future Space

Upstairs Laundry

Vaulted / Cathedral Ceilings


Outdoor Spaces



Wheelchair Adaptable

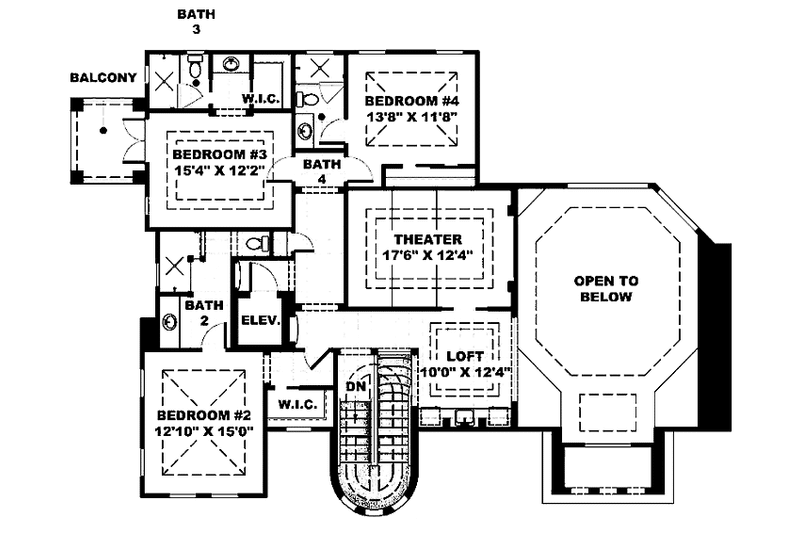

Bedroom 2:

192 sq/ft width 12' 10" x depth 15'

Bedroom 3:

186 sq/ft width 15' 4" x depth 12' 2"

Bedroom 4:

159 sq/ft width 13' 8" x depth 11' 8"

Dining Room:

151 sq/ft width 13' 4" x depth 11' 4"

Exercise Room:

116 sq/ft width 9' 4" x depth 12' 6"

Family Room:

383 sq/ft width 19' 6" x depth 19' 8"


834 sq/ft width 21' 6" x depth 38' 10"


203 sq/ft width 14' x depth 14' 6"

Living Room:

356 sq/ft width 21' 5" x depth 16' 8"


123 sq/ft width 10' x depth 12' 4"

Master Suite:

266 sq/ft width 14' 2" x depth 18' 10"


162 sq/ft width 12' 2" x depth 13' 4"

Theatre Room:

215 sq/ft width 17' 6" x depth 12' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
